Article No. 40146
RECYFIX STANDARD 150, class B 125
Type 01 with mesh cover MW 30/30 mm, galvanised, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

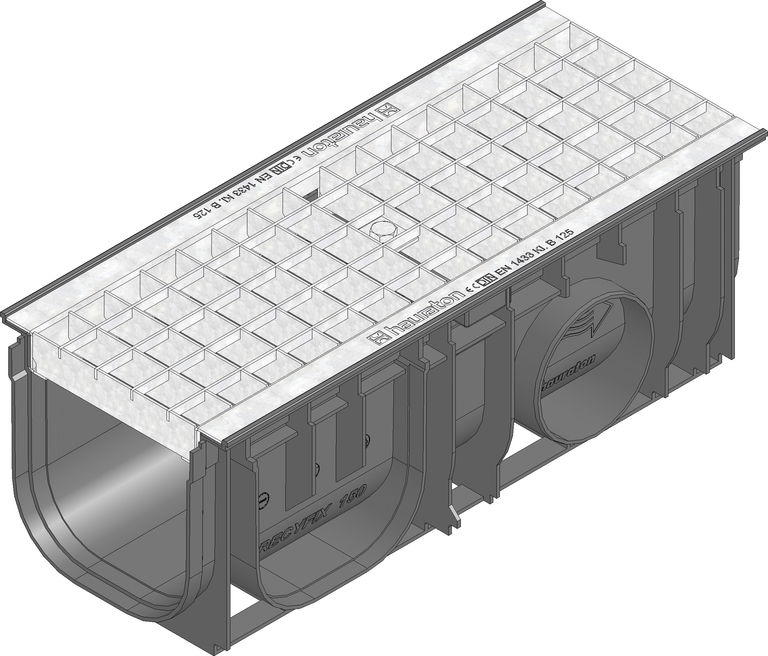

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40146
Length
500 mm
Width
210 mm
Height
192 mm
Einlegetiefe
2 mm
Weight
7.75 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, reinforced Polyamide
Intake cross-section
1237.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 150 Channel type 01 with mesh cover MS 30/30 mm, galvanised, cl. B 125, locked, 0.5 m
Product description
RECYFIX STANDARD 150 type 01 - channel made of modified PP, according to EN 1433, with mesh cover, mesh width 30/30, galvanised, loading capacity from A 15 - B 125, with locking device, L/W/H 500x210x192 mm, item no. 40146
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - B 125,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Installation instructions
