Article No. 40150

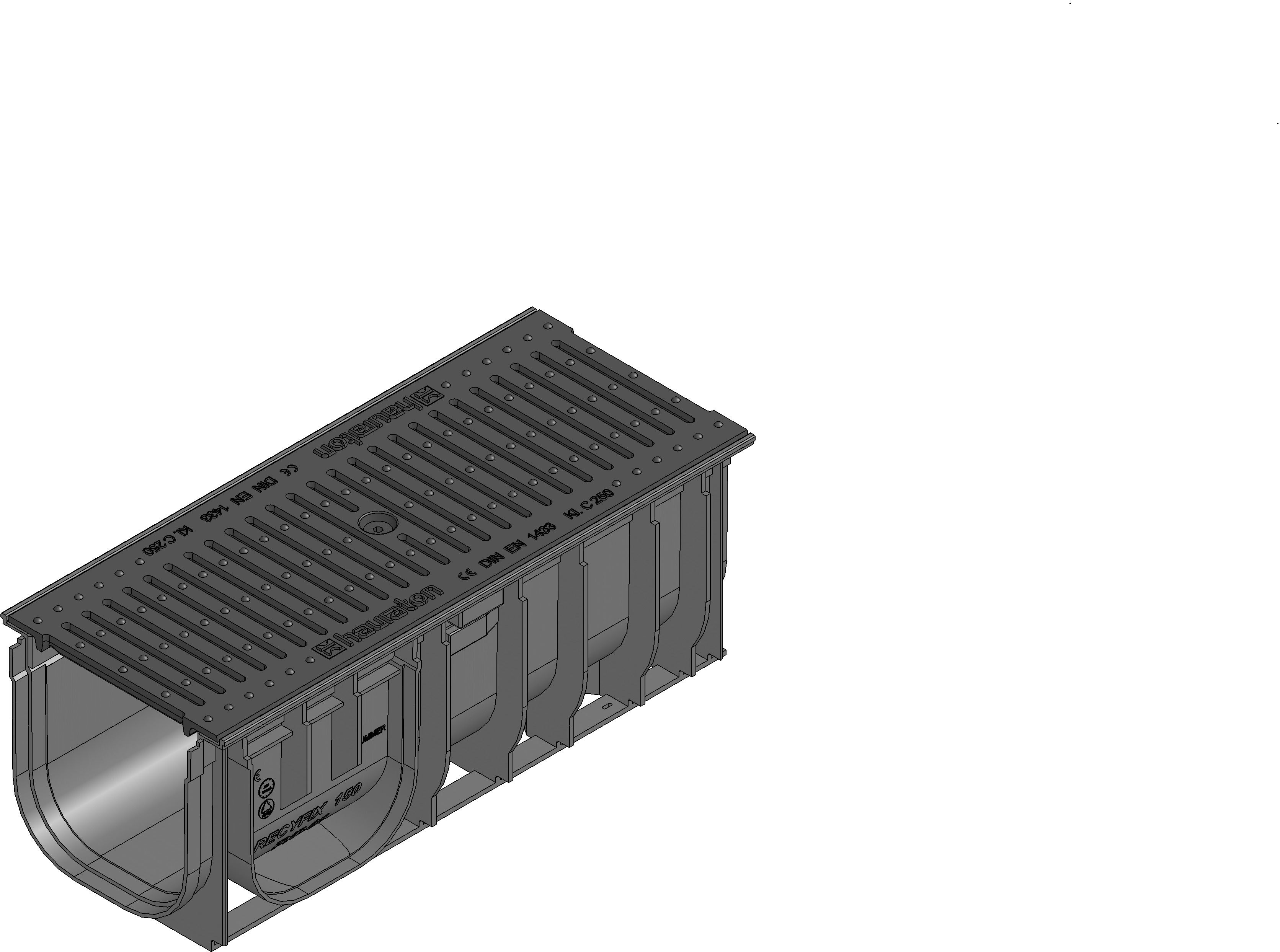

RECYFIX STANDARD 150, class C 250
Type 01 with ductile iron cover black, SW 6 mm, locked, 0,5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40150
Length
500 mm
Width
210 mm
Height
192 mm
Einlegetiefe
6 mm
Weight
6.58 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
400.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 150 Type 01 with ductile iron cover black, SW 6 mm, cl. C 250, locked
Produktbeschreibung
RECYFIX STANDARD 150 type 01 - channel made of modified PP, according to EN 1433, with ductile iron cover made of spheroidal ductile iron GJS 500-7, slot width 6 mm, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 500x210x192 mm, item no. 40150
Verpackungseinheit
50 Unit / Pallet
