Article No. 40141
RECYFIX STANDARD 150, class C 250
Type 100 with GUGI-Ductile iron mesh cover MW 15/25 mm, black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Top view

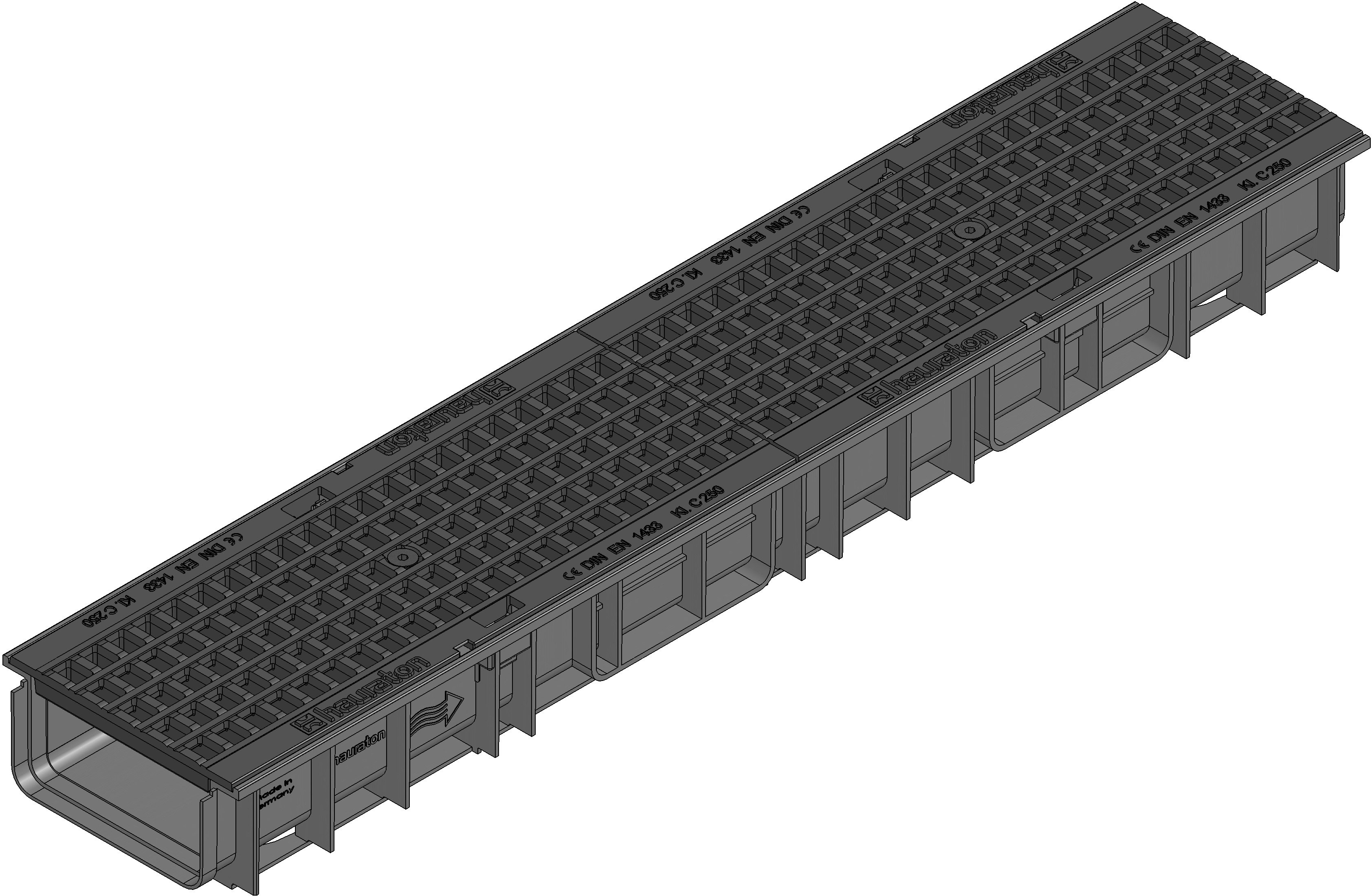

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40141
Length
1000 mm
Width
210 mm
Height
100 mm
Einlegetiefe
6 mm
Weight
11.59 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
735.0 cm²/m
Nominal size
150
Internal channel cross-section
116 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 150 Type 100 with GUGI-Ductile iron mesh cover, MW 15/25, cl. C 250, locked
Produktbeschreibung
RECYFIX STANDARD 150 type 100 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75/110, with GUGI-ductile iron mesh cover made of spheroidal ductile iron GJS 500-7, mesh width 15/25, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x210x100 mm, item no. 40141
Verpackungseinheit
50 Unit / Pallet
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
