Article No. 40672
RECYFIX STANDARD 200, class B 125
Type 010 with mesh cover MW 30/30 mm, galvanised, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40672
Length
1000 mm
Width
256 mm
Height
185 mm
Einlegetiefe
2 mm
Weight
9.30 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
hot-dip galvanised steel
Regelwerke
EN 1433, DIN 19580
Vertriebstext

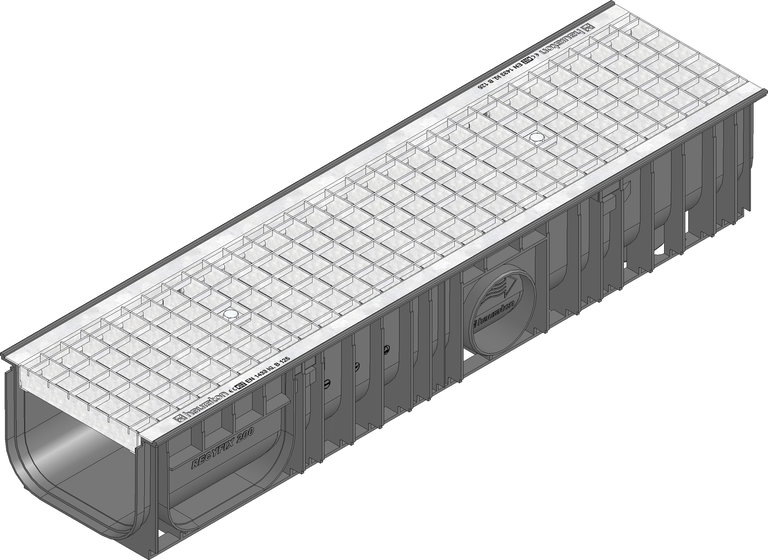

RECYFIX STANDARD 200 channel type 010 with mesh cover MW 30/30, class B 125, with locking device
Produktbeschreibung
RECYFIX STANDARD 200 type 010 - channel made of modified PP, according to EN 1433, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with mesh cover, mesh width 30/30 and locking device, loading capacity from A 15 - B 125, L/W/H 1000x256x185 mm, item no. 40672
Verpackungseinheit
20 Unit / Pallet
