Article No. 40660

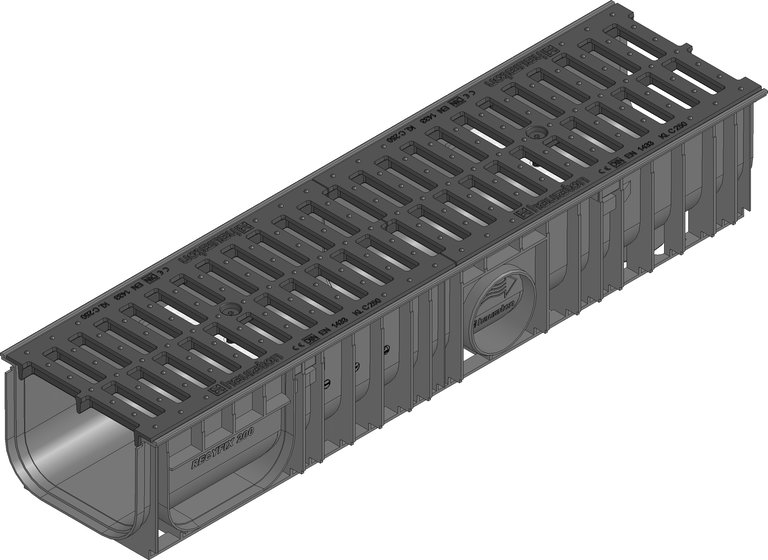

RECYFIX STANDARD 200, class C 250
Type 010 with ductile iron cover 2 x 85/20 mm, black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40660
Length
1000 mm
Width
256 mm
Height
185 mm
Einlegetiefe
5 mm
Weight
15.00 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
822.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 200 channel type 010 with ductile iron cover, class C 250, black, with locking handle device
Produktbeschreibung
RECYFIX STANDARD 200 type 010 - channel made of modified PP, according to EN 1433, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with ductile iron cover made of spheroidal ductile iron GJS 500-7, slot width 2x85/20, with horizontal thrust resistance and locking device, black, loading capacity from A 15 -C 250, L/W/H 1000x256x185 mm, item no. 40660
Verpackungseinheit
20 Unit / Pallet
