Article No. 40666

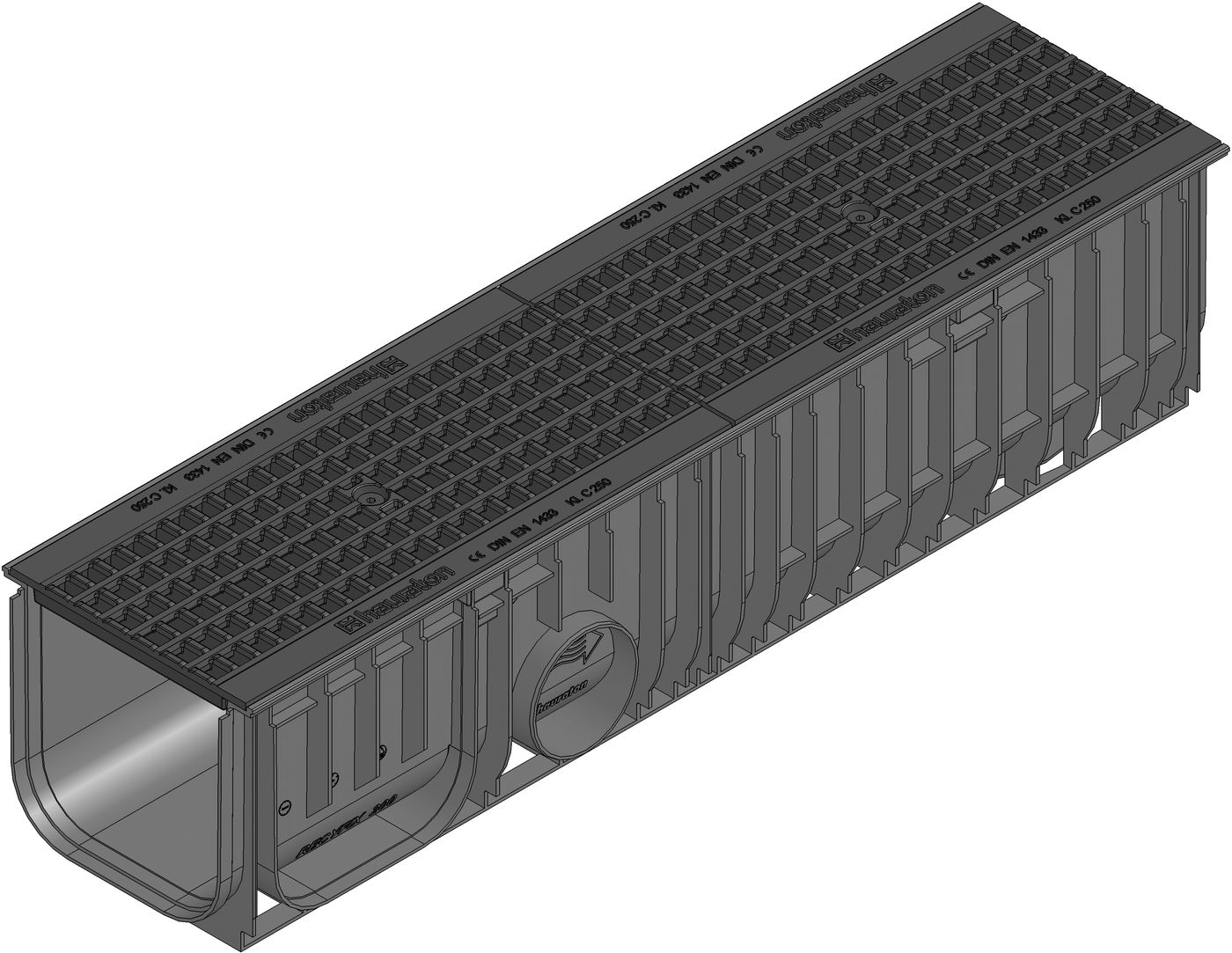

RECYFIX STANDARD 200, class C 250
Type 020 with GUGI-Ductile iron mesh cover MW 15/25 mm, black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40666
Length
1000 mm
Width
256 mm
Height
235 mm
Einlegetiefe
6 mm
Weight
16.98 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
836.0 cm²/m
Nominal size
200
Internal channel cross-section
394 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 19580
Vertriebstext
RECYFIX STANDARD 200 channel type 020 with GUGI-ductile iron mesh cover, black, class C 250, with locking device
Produktbeschreibung
RECYFIX STANDARD 200 type 020 - channel made of modified PP, according to EN 1433, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with GUGI-ductile iron mesh cover made of spheroidal ductile iron GJS 500-7, mesh width 15/25, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x256x235 mm, item no. 40666
Verpackungseinheit
16 Unit / Pallet
