Article No. 40641
RECYFIX STANDARD 200, class C 250
Type 100 with GUGI-Ductile iron mesh cover MW 15/25 mm, black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

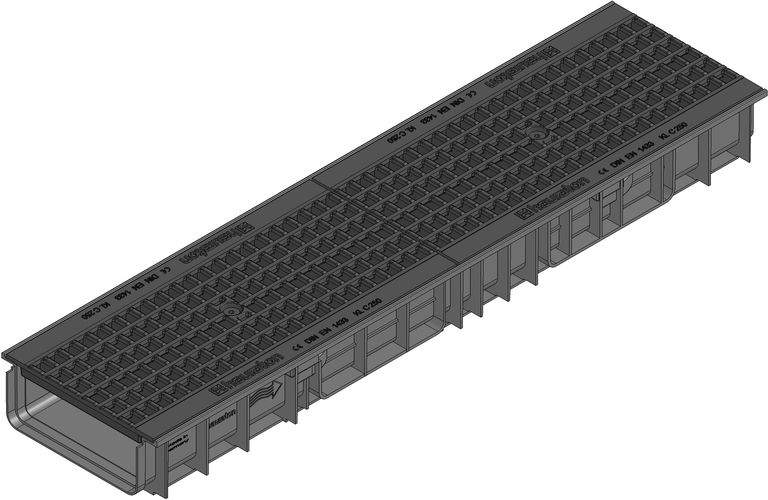

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40641
Length
1000 mm
Width
256 mm
Height
100 mm
Einlegetiefe
6 mm
Weight
15.61 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
836.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Channel type 100 with GUGI-ductile iron mesh cover MS 15/25 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX STANDARD 200 type 100 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75/110, with GUGI-ductile iron mesh cover made of spheroidal ductile iron GJS 500-7, mesh width 15/25, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x256x100 mm, item no. 40641
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - B 125,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Installation instructions
