Article No. 32797

SLOTTED COVERS 100, neck height 105 mm, class A 15

Asymmetrical, with integrated access cover left, SW 10 mm, stainless steel, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

Technical drawing

Drawing (CAD)

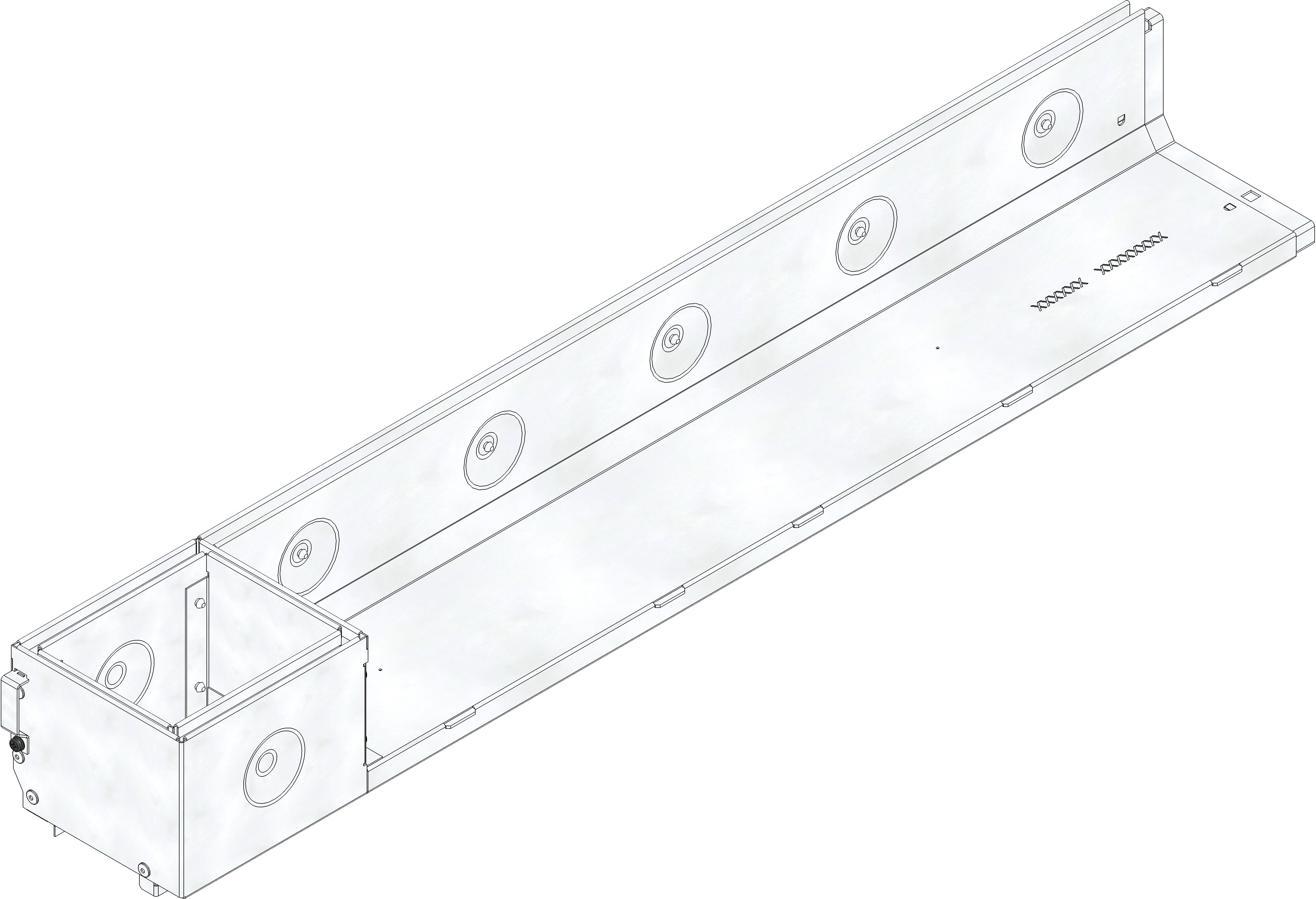

Product image

Data Sheet

Technical information and metrics

Article No.
32797
Length
1000 mm
Width
155 mm
Height
133 mm
Einlegetiefe
125 mm
Weight
5.41 kg
Material
Stainless steel 1.4301
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
10
Regelwerke
in accordance with EN 1433
Vertriebstext
Slotted cover SW 10 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connection element, cl. A 15, with integrated access cover left, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Produktbeschreibung
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover slot width 10 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connection element, loading capacity A 15, with integrated access cover left, length 1000 mm, item no. 32797
Verpackungseinheit
42 Unit / Pallet

Declaration of Performance

Tender Texts

Installation example

Pavement class A 15

Pavement class B 125

Pavement class C 250

Pavement class C 250

Asphalt class D 400

Asphalt class D 400

Pavement class D 400

Asphalt class D 400

Concrete class E 600

Pavement class D 400

Installation instructions
