Article No. 32295

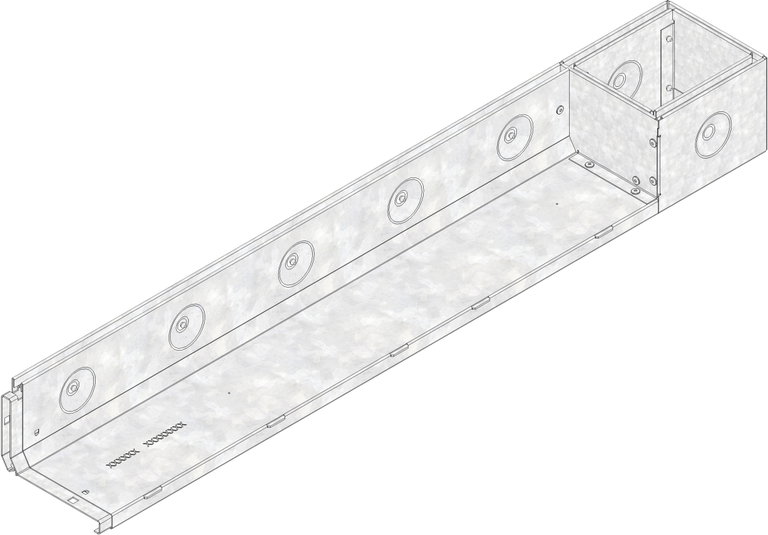

SLOTTED COVERS 100, neck height 105 mm, class A 15
Asymmetrical, with integrated access cover right, SW 10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical drawing
Drawing
Drawing (CAD)
Product image
Data Sheet
Technical information and metrics
Article No.
32295
Length
1000 mm
Width
155 mm
Height
133 mm
Einlegetiefe
125 mm
Weight
5.66 kg
Material
strip galvanized steel
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
10
Regelwerke
in accordance with EN 1433
Vertriebstext
Slotted cover SW 10 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connection element, cl. A 15, with integrated access cover right, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Produktbeschreibung
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -slotted cover slot width 10 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity class A 15, with integrated access cover rigth, length 1000 mm, item no. 32295
Verpackungseinheit
42 Unit / Pallet
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
