Article No. 32253
SLOTTED COVERS 100, neck height 105 mm, class C 250
Asymmetrical, duo slot, SW 2 x 6 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

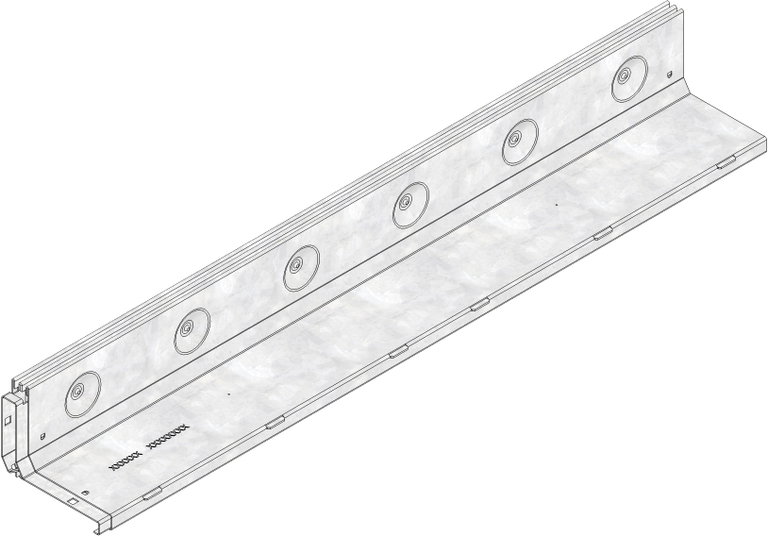

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32253
Length
1000 mm
Width
156 mm
Height
134 mm
Einlegetiefe
126 mm
Weight
8.31 kg
Material
strip galvanized steel
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
6
Material cover
strip galvanized steel
Regelwerke
EN 1433
Vertriebstext
Duo slotted cover SW 2x6 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connection element, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Produktbeschreibung
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Duo slotted cover slot width 2x6 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity from A 15 - C 250, length 1000 mm, item no. 32253
Verpackungseinheit
80 Unit / Pallet
Declaration of Performance
