Article No. 32249

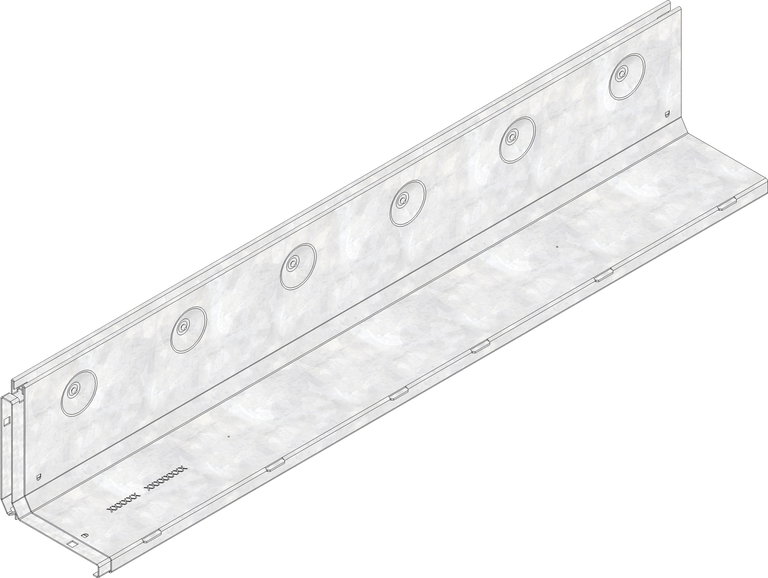

SLOTTED COVERS 100, neck height 160 mm, class C 250
Asymmetrical SW 12mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32249
Length
1000 mm
Width
156 mm
Height
188 mm
Einlegetiefe
181 mm
Weight
7.24 kg
Material
strip galvanized steel
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
12
Regulations
EN 1433
Sales text
Slotted cover SW 12 mm, neck height 160 mm, galvanised, asymmetric, with integrated, full-surface connector, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover slot width 12 mm, neck height 160 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity from A 15 - C 250, length 1000 mm, item no. 32249
Packaging unit
48
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Asphalt class D 400,
Concrete class E 600,
Pavement class D 400,
Installation instructions
