Article No. 32819
SLOTTED COVERS 100, neck height 200 mm, class E 600
Asymmetrical SW 18 mm, stainless steel, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

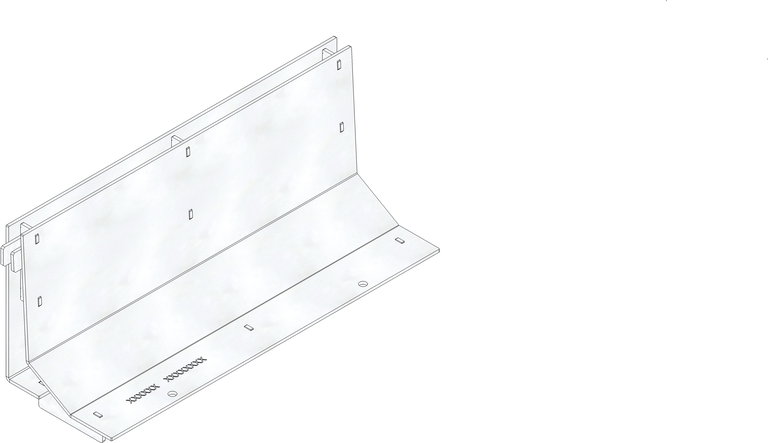

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32819
Length
500 mm
Width
160 mm
Height
232 mm
Einlegetiefe
204 mm
Weight
9.27 kg
Material
Stainless steel 1.4301
Intake cross-section
180.0 cm²/m
Nominal size
100
Inlet opening
18
Regulations
EN 1433
Sales text
Slotted cover SW 18 mm, neck height 200 mm, stainless steel, asymmetric, cl. E 600, FASERFIX STANDARD E 100, 0.5 m
Product description
FASERFIX STANDARD E 100 - slotted cover slot width 18 mm, neck height 200 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, loading capacity from A 15 to E 600, length 500 mm, item no. 32819
Packaging unit
80
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Asphalt class D 400,
Concrete class E 600,
Pavement class D 400,
Installation instructions
