Article No. 32402

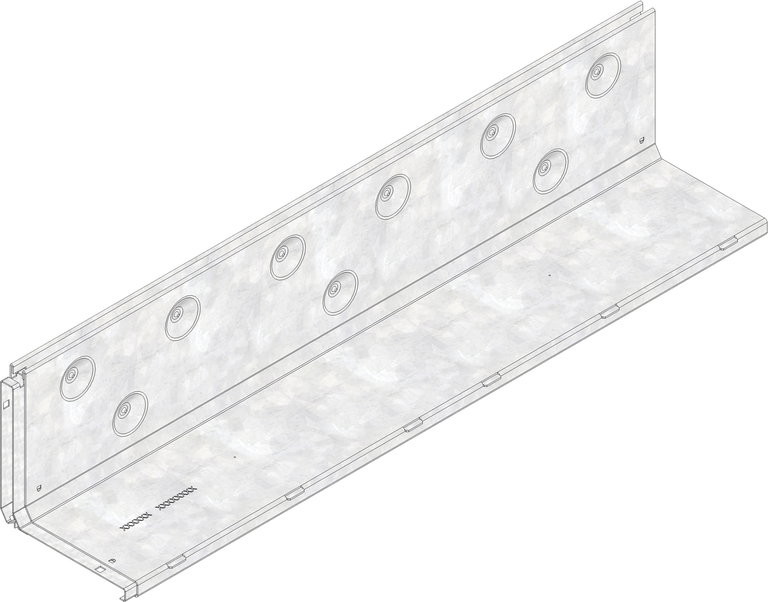

SLOTTED COVERS 150, neck height 200 mm, class D 400
Asymmetrical, SW 14 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32402
Length
1000 mm
Width
206 mm
Height
229 mm
Einlegetiefe
222 mm
Weight
11.72 kg
Material
strip galvanized steel
Intake cross-section
140.0 cm²/m
Nominal size
150
Inlet opening
14
Regelwerke
EN 1433
Vertriebstext
Slotted cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, with integrated, full-surface connection element, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150, 1 m
Produktbeschreibung
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150 -slotted cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity from A 15 - D 400, length 1000 mm, item no. 32402
Verpackungseinheit
40 Unit / Pallet
Declaration of Performance
Tender Texts
Installation example
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Concrete class E 600
Installation instructions
