Article No. 32820
SLOTTED COVERS 150, neck height 200 mm, class E 600
Asymmetrical SW 18 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

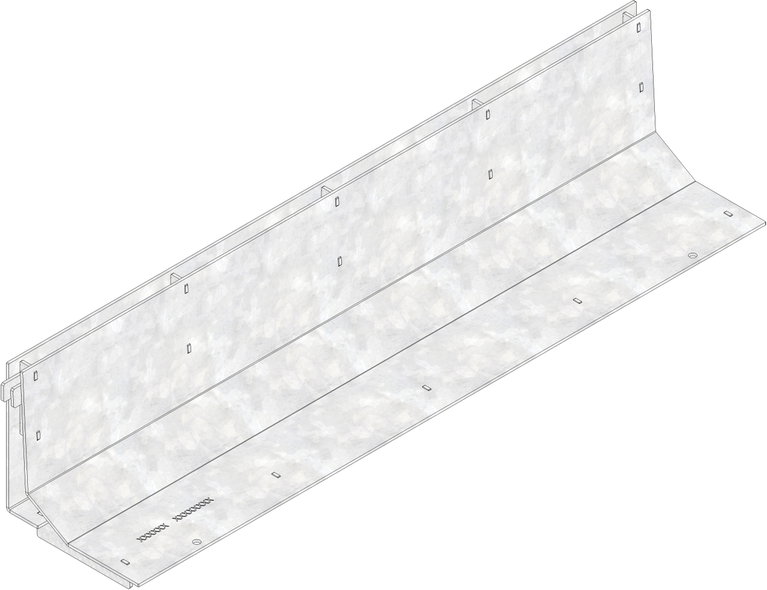

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32820
Length
1000 mm
Width
210 mm
Height
232 mm
Einlegetiefe
204 mm
Weight
20.43 kg
Material
hot-dip galvanised steel
Intake cross-section
180.0 cm²/m
Nominal size
150
Inlet opening
18
Regelwerke
EN 1433
Vertriebstext
Slotted cover SW 18 mm, neck height 200 mm, galvanised, asymmetric,cKl. E 600, FASERFIX STANDARD 150, 1 m
Produktbeschreibung
FASERFIX STANDARD 150 - slotted cover slot width 18 mm, neck height 200 mm, galvanised, asymmetric, loading capacity from A 15 to E 600, length 1000 mm, item no. 32820
Verpackungseinheit
40 Unit / Pallet
Declaration of Performance
Tender Texts
Installation example
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Concrete class E 600
Installation instructions
