Article No. 7702
SPORTFIX CLEAN 100, filter channels
Type 020 middle element, with GUGI mesh cover, MW 15/25 mm, black, class B 125 and drainage pipe with geotextile, incl. 10 L filter substrate CARBOTEC 100, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

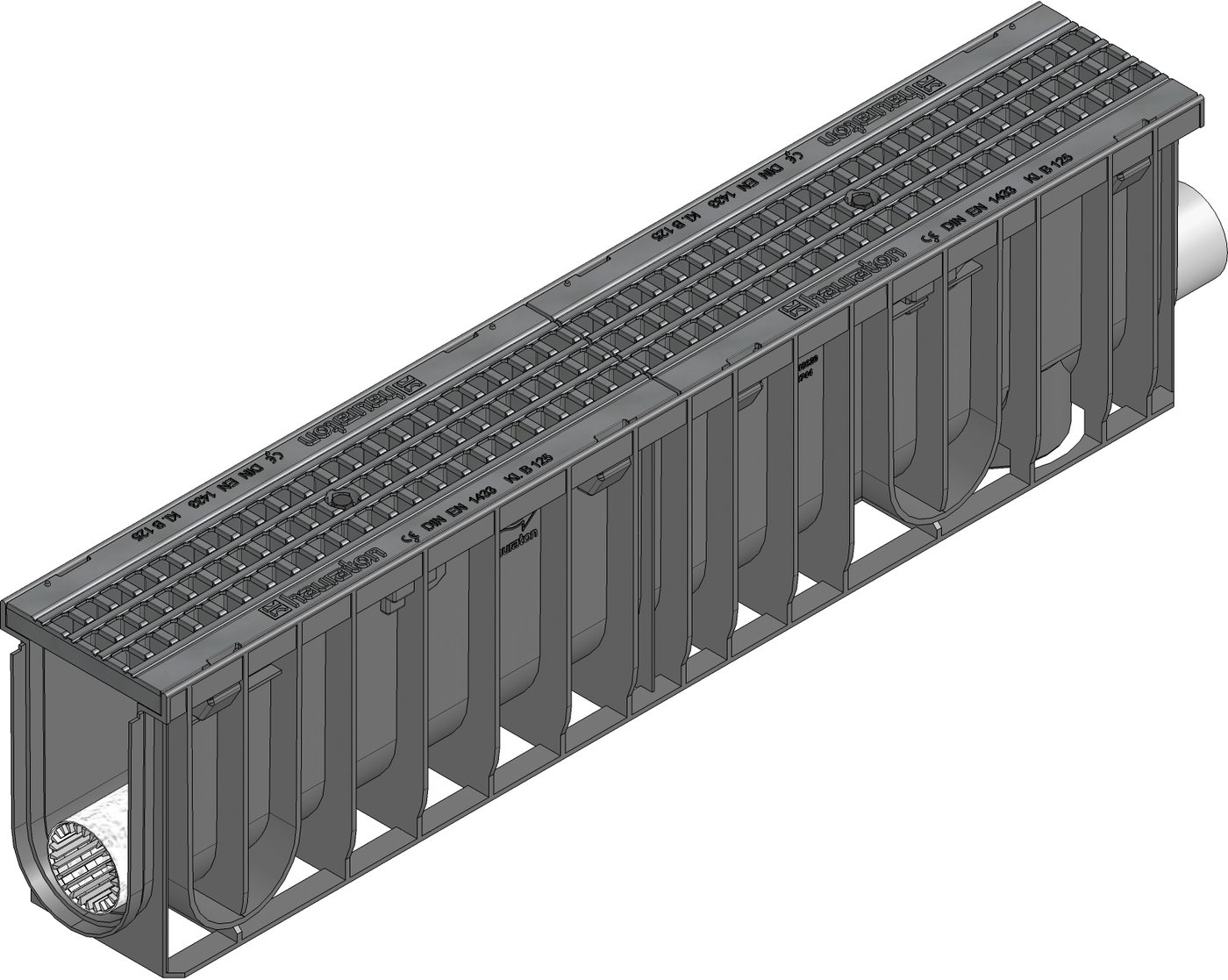

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
7702
Length
1000 mm
Width
160 mm
Height
250 mm
Einlegetiefe
20 mm
Weight
-
Material
mineral filter substrate, recycled-modified-polypropylene-asia, recyfix-material-recycled-pa-asia, reinforced-polyamide-asia, steel-black-galvanised-asia
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Regelwerke
EN 1433, EN 1433 + IAKS, DIN 19580
Vertriebstext
SPORTFIX CLEAN 100 type 020, intermediate piece, with GUGI cover MW 15 /25, black, cl. B 125 and drainage pipe with geotextile and connection p iece, open, incl. 10 L filter substrate CARBOTEC 100, 1 m
Produktbeschreibung
SPORTFIX CLEAN 100 type 020, intermediate piece, made of modified PP, channel production with "blue angel" eco-label, according to EN 1433, CE compliant, incl. drainage pipe DN/OD 70 wrapped with geotextile and connection socket, with GUGI mesh cover, mesh width 15/25, black, made of reinforced polyamide, loading capacity B 125, incl. 10 L filter substrate CARBOTEC 100 L/W/H 1000x160x250 mm, item no. 7702
Verpackungseinheit
-
Tender Texts
Installation example
running track / artificial turf class A 15
artificial turf class A 15
Concrete class A 15 - C 250
Pavement class A 15
Pavement class A 15
