Article No. 7869
SPORTFIX ROME (I) Channels
Type 010 with GUGI-Mesh cover made of PA-GF, MW 15/25 mm, black, for securing of artificial turf, 0,5 m
Questions?

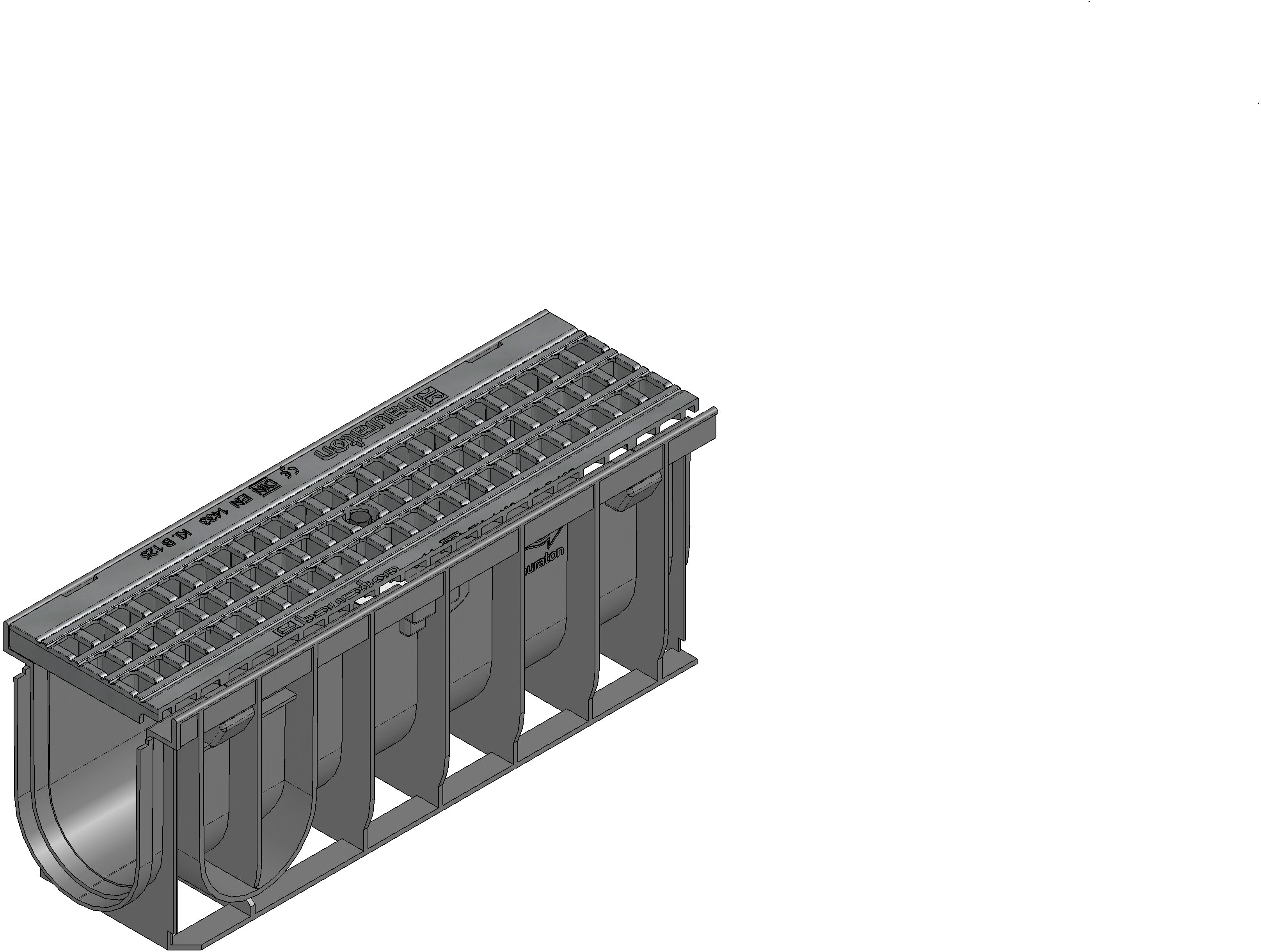

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
7869
Length
500 mm
Width
160 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
2.30 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Typ nach DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material cover
reinforced Polyamide
Vertriebstext
SPORTFIX channel ROME I type 010 with mesh cover for securing of unfilled artificial turf, 0,5 m
Produktbeschreibung
SPORTFIX Rome I type 010 channel made of modified PP, with PP mesh cover for securing of unfilled artificial turf, L/W/H 500x160x200 mm, item no. 7869
Verpackungseinheit
70 Unit / Pallet
