Article No. 48753
Trash boxes
for NW 100, with silt bucket made of composite, with ductile iron cover, SW 100/10 mm, black, class E 600, 4-fold bolted, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

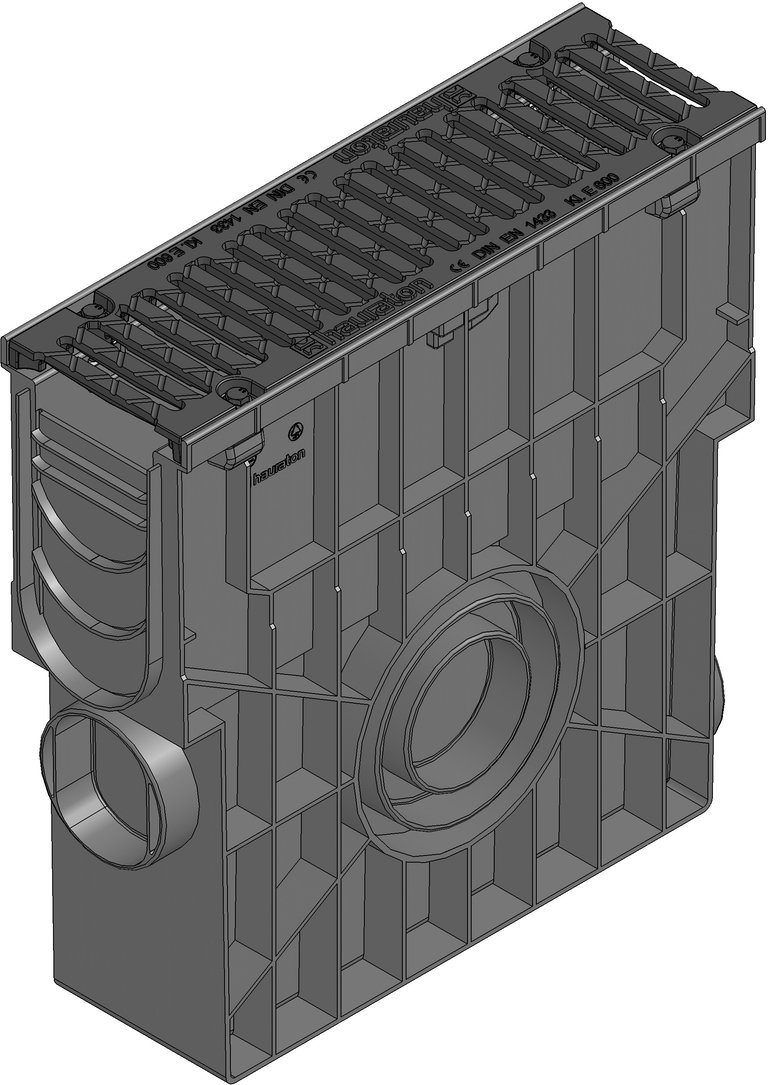

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
48753
Einlegetiefe
20 mm
Weight
8.86 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
426.0 cm²/m
Nominal size
100
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with ductile iron cover SW 104/10 mm, black, cl. E 600, with silt bucket made of composite, RECYFIX NC 100, 0.5 m
Product description
RECYFIX NC 100 - Trash box made of modified PP, according to EN 1433, with integrated angle housing, four-sided preformed pipe connection element (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable silt bucket made of composite, suitable for both-sided connection of channels type RECYFIX NC 100, with ductile iron cover made of spheroidal ductile iron GJS 500-7, slot width 104/10 mm, black, loading capacity from A 15 - E 600, fourfold locking, L/W/H 500x160x504 mm, item no. 48753
Packaging unit
28
