Article No. 22052
Trash boxes
for NW 150, with galvanised steel angle housing and galvanised bucket, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
22052
Length
500 mm
Width
240 mm
Height
600 mm
Weight
88.10 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
150
Regelwerke
EN 1433, DIN 19580
Vertriebstext
Trash box with galvanised steel angle housing, silt bucket made of galvanised steel, FASERFIX SUPER 150, 0,5 m
Produktbeschreibung

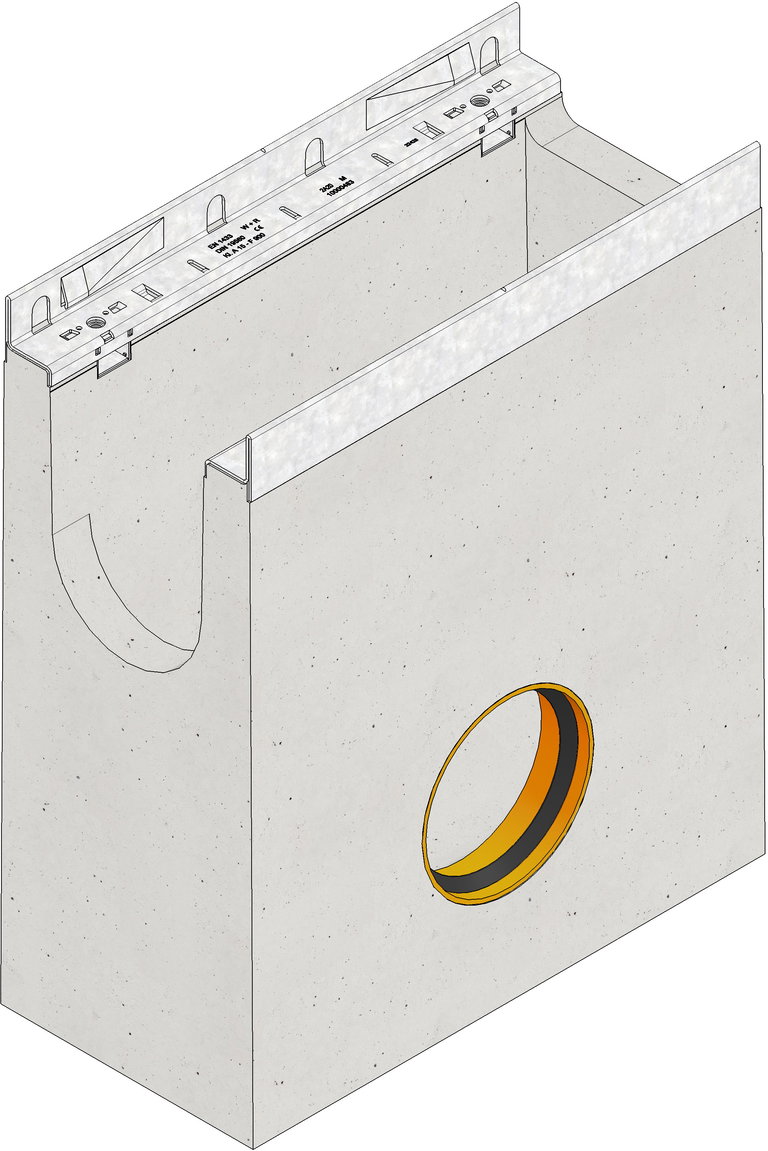

FASERFIX SUPER 150 - Trash box made of fibre reinforced concrete, loading capacity from A 15 -F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, two-sided connection possibility (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable silt bucket made of galvanised steel, suitable for both-sided connection of channel types FASERFIX SUPER 150, L/W/H 500x240x600 mm, item no. 22052
Verpackungseinheit
6 Unit / Pallet
