Article No. 16500
Trash boxes
for system size up to 8000, with ductile iron cover SW 3 x 140/20 mm, class E 600
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

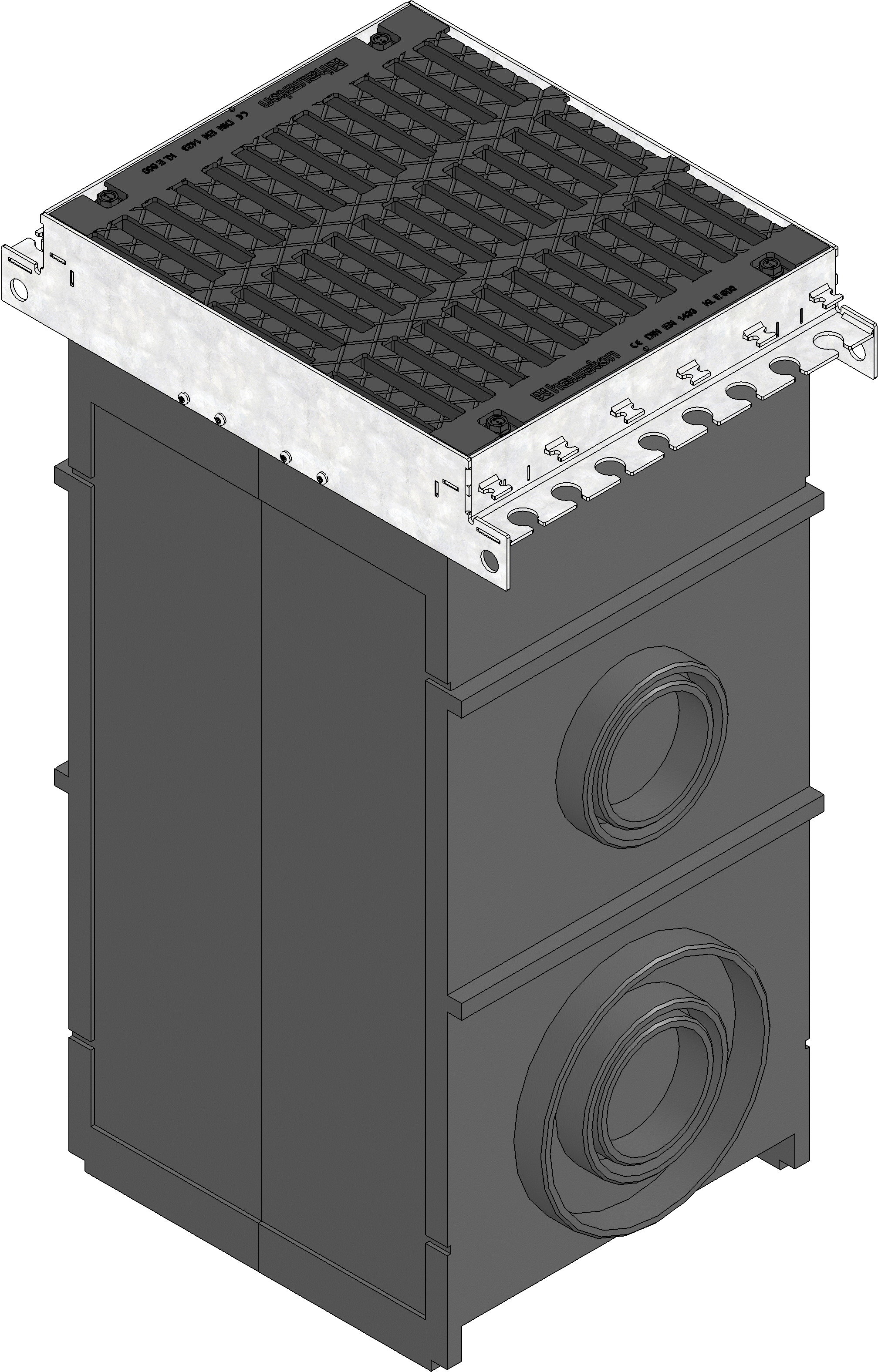

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
16500
Einlegetiefe
40 mm
Weight
101.00 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled polyolefin, Steel 8.8 zinc-laminated black
Intake cross-section
2059.0 cm²/m
Nominal size
1000, 2000, 3000, 5000, 8000
Material cover
Ductile iron GJS 500-7
Regelwerke
EN 1433, DIN 19580
Vertriebstext
Trash box with galvanised frame, with ductile iron cover, SW 3 x 140/20, black, cl. E 600, RECYFIX HICAP 1000/2000/3000/5000/8000
Produktbeschreibung
RECYFIX HICAP F/G/T 1000/2000/3000/5000/8000 -Trash box, according to EN 1433, CE compliant, with galvanised steel angle housing, with ductile iron cover made of spheroidal ductile iron GJS 500-7, SW 3 x 140/20, loading capacity from A 15 up to E 600, fourfold locking, two-sided connection possibility with variable PVC-U socket DN/OD 160, DN/OD 200, DN/OD 315, for connection of RECYFIX HICAP F/G/T-channels L/W/H 510x590x1116 mm, item no. 16500
Verpackungseinheit
2 Unit / Pallet
