DRAINFIX TWIN
The infiltration system for medium loads on public or private areas.
Our solution – your benefit with DRAINFIX TWIN
DRAINFIX TWIN is a system solution for decentralised infiltration in low-traffic private and public facilities or areas. Depending on the installation situation, the load capacity ranges from pedestrianised to SLW 30. The particularly large retention volume offers plenty of space for rainwater that accumulates abruptly. The design makes it easy to join the parts together and achieve a stable connection of the individual elements. End caps, shafts and closed DRAINFIX TWIN elements for rainwater retention complete the range.
-
Complete system solution offers flexible installation options: DRAINFIX TWIN elements, end cap with variable connection possibilities and DRAINFIX system shaft for inspection or filtration
-
Space-saving design reduces space requirements by 2/3 compared to conventional gravel trenches
-
Easy installation and simple handling on the construction site due to high-quality and lightweight PP
-
Six different combination possibilities with the two DRAINFIX TWIN basic elements enable optimal combination depending on soil conditions and requirements
-
Optimised transport due to space-saving stacking of the DRAINFIX TWIN elements
-
Very high storage capacity due to combinable elements
The HAURATON Product Finder
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.

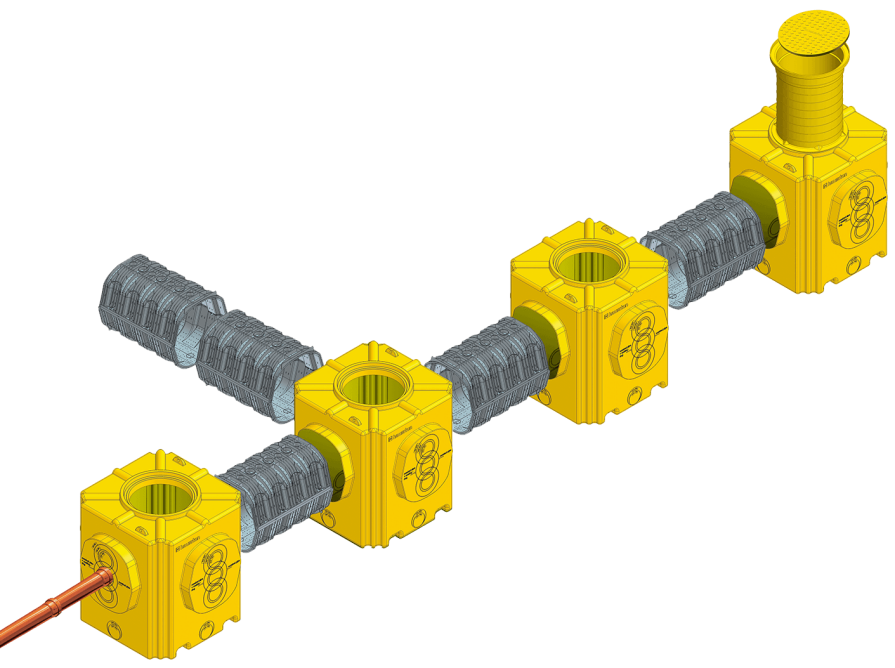

Pipe connection for inlet and outlet in different sizes
Shaft made of PE

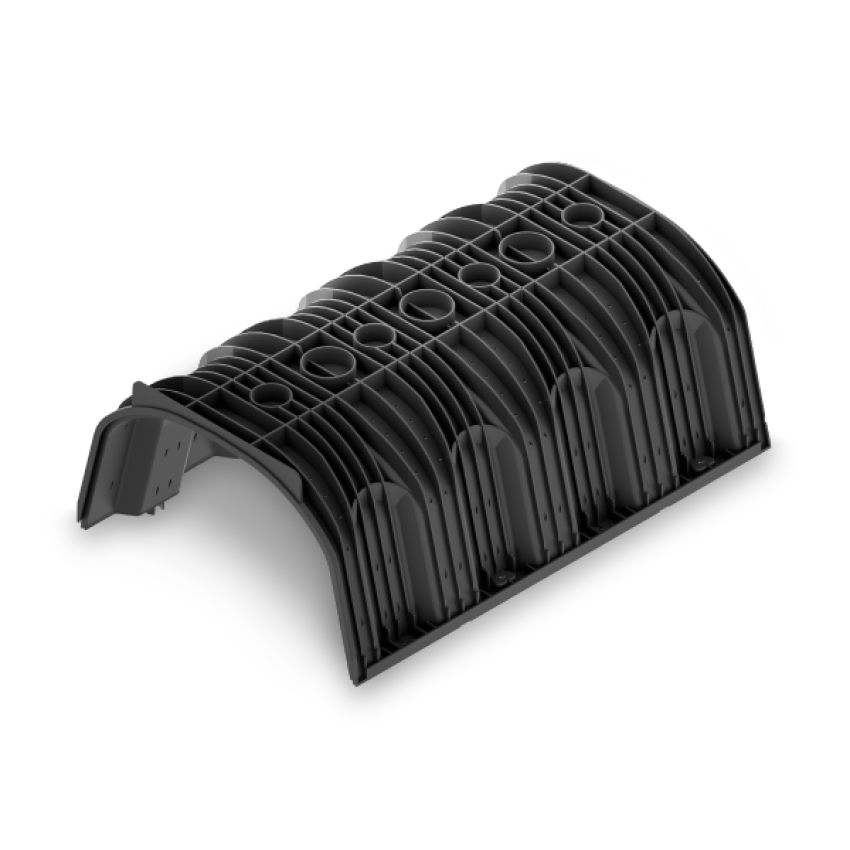

DRAINFIX®TWIN 1/1, made of PP, with drainage perforations for infiltration and retention of surface water
Optional shaft heightening
Cover in class A 15, made of PE, for plastic shaft or shaft heightening. Alternatively, a ductile iron cover with class D 400 can be used.
System components
DRAINFIX TWIN
Possible combinations of DRAINFIX TWIN elements
The DRAINFIX TWIN system has a wide range of combination possibilities to provide the ideal solution for every need. Six different combinations can be created with the two basic elements DRAINFIX TWIN 1 with drainage perforation and DRAINFIX TWIN 0 without drainage perforation. In the different installation situations, these combinations can be installed according to requirements. The elements are optimally combined according to the soil conditions and the requirements of the infiltration element. With just a few construction elements, DRAINFIX TWIN thus offers the greatest possible adaptability to the building project and the soil conditions.
