FASERFIX SUPER
Extremely resistant to heavy loads and dynamic forces.
Your benefits with FASERFIX SUPER

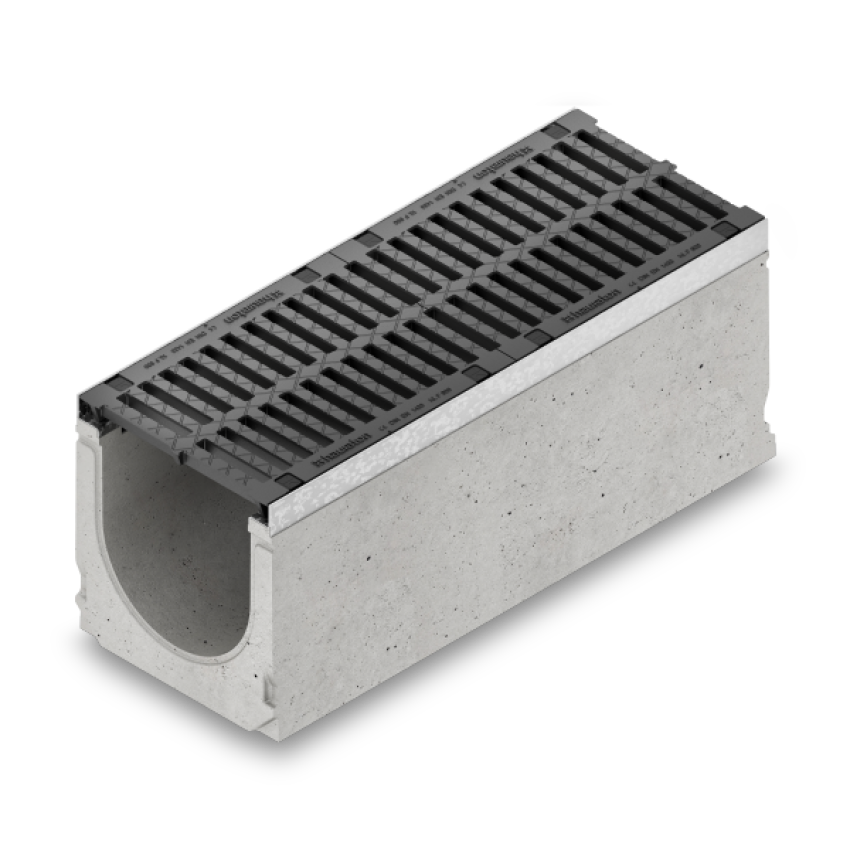

Manufactured from fibre-reinforced concrete, the FASERFIX SUPER channels provide maximum stability and superior resistance against extreme loads and dynamic forces. The systems are rated up to load class F 900 making them ideal for demanding environments such as industrial units, service yards, airports and container terminals. The high-quality material and extra-thick sidewalls amplify the system’s superior strength against load-bearing forces, high speeds and lateral movements.
-
Numerous cover designs, materials and load classes according to DIN EN 1433
-
Resistant to environmental influences such as frost, heat and moisture
-
Covers securely fixed with 8 bolts per metre, achieves 16 locking points over one unit for extra strength and security
-
Corrosion-protected angle housing made of zinc-magnesium coated steel or stainless steel
-
Nominal sizes from 100 to 500 mm each in different heights
-
Covers are secure in 40 mm x 40 mm deep angle housing
-
Fire resistance class A1 (non-flammable) according to DIN 4102
-
SIDE-LOCK boltless locking system, saves on installation time
The HAURATON Product Finder
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
Channels made of fibre reinforced concrete, according DIN V 19580 / EN 1433, CE-conform with safety joint, steel angle housings and boltless locking system SIDE-LOCK with groove and tongue connection for exact installation
numerous grating options, for example GUGI-Ductile iron mesh gratings
Trash box with 3-sided pipe connection possibilities, integrated PVC-U socket DN/OD 110 with removable mud bucket
End caps with outlet
End caps without outlet
System components
FASERFIX SUPER
SIDE-LOCK: time-saving revolutionary boltless locking system
SIDE-LOCK is a unique and straightforward way of locking covers into position without bolts or special tools. The cover is aligned and positioned correctly on the channel and locked into place with foot pressure. It is securely locked in place and won’t dislodge when exposed to heavy traffic conditions, longitudinal or transverse movements.
SIDE-LOCK feature can save up to 90% on installation time and provides ease of maintenance. Simply access the trench drain by levering open the cover with a screwdriver by positioning it near the locking system.
Videos
Case Studies with FASERFIX SUPER
Take a look at some projects where FASERFIX SUPER provides strong and reliable performance within locations that required a robust drainage system.
