Product image

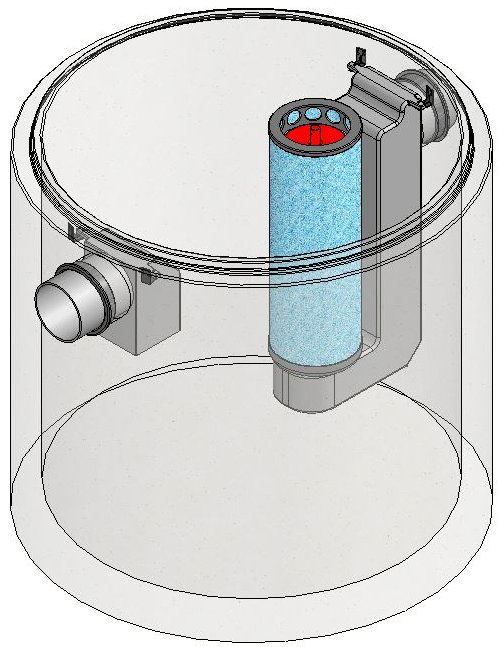

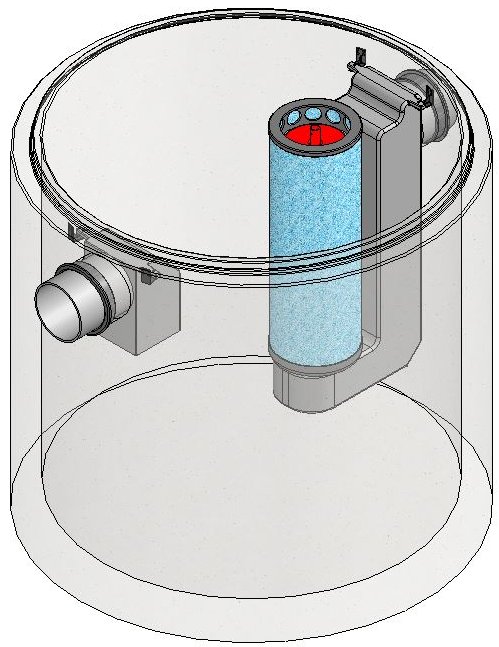

Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
3103500P
Length
2300 mm
Width
2300 mm
External diameter
2300 mm
Height
2400 mm
Weight
9110.00 kg
Material
AQUAFIX coalescence material, AQUAFIX Concrete, AQUAFIX PE, EPDM, Standard concrete acc. norm
Nominal size
50 l/s
Bypass
without bypass
Flow performance
50.0 l/s
sludge trap capacity
-
Separator capacity
4000 l
DN in-/outlet
315 mm
HE H inlet
1615 mm
HA Höhe Auslauf
1590 mm
DNE Manhole 1
625 mm
Regulations
EN 858
Packaging unit
1
