Article No. 383515
AQUAFIX KPE Coalescence separator
KPE 15
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

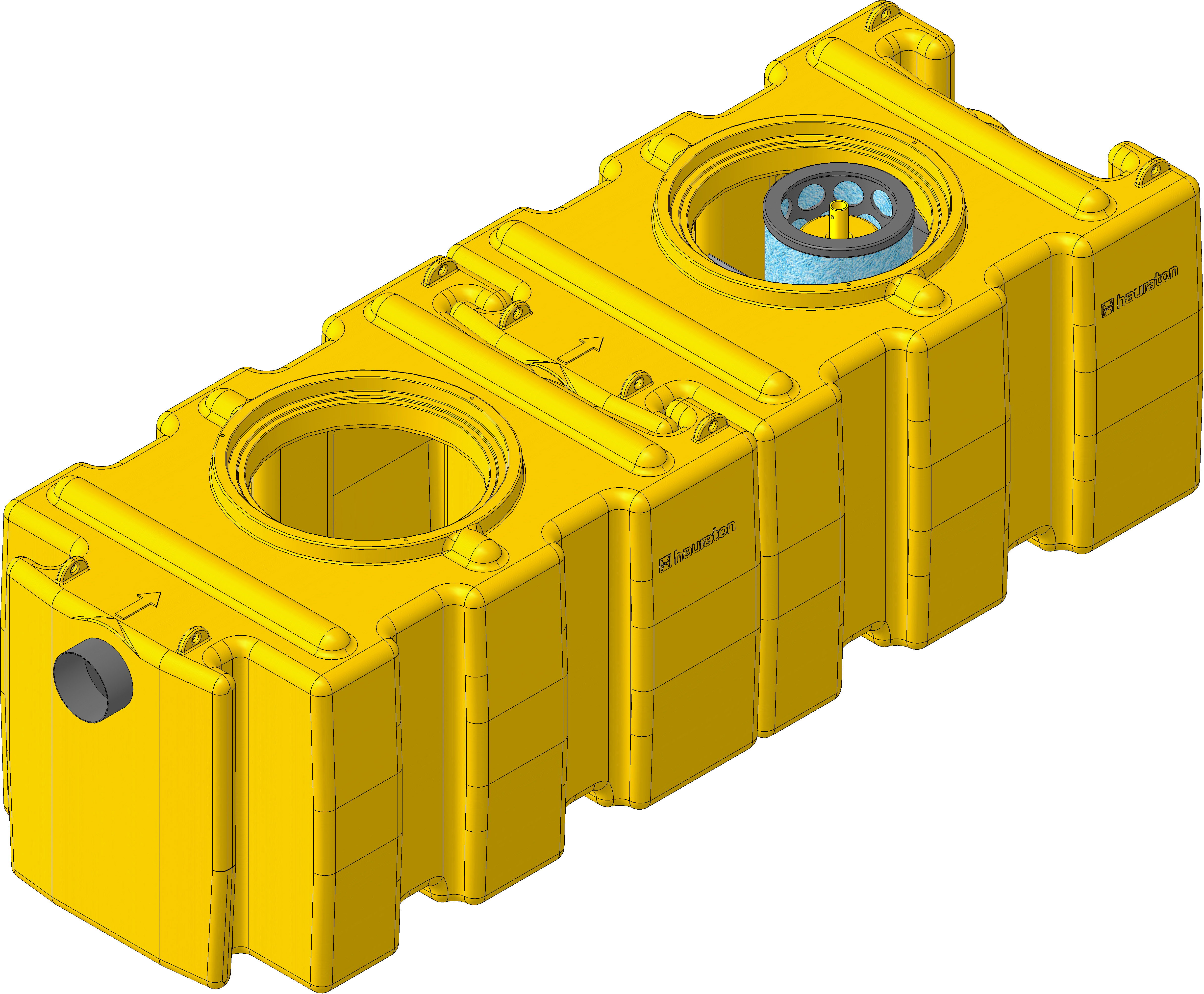

Product image

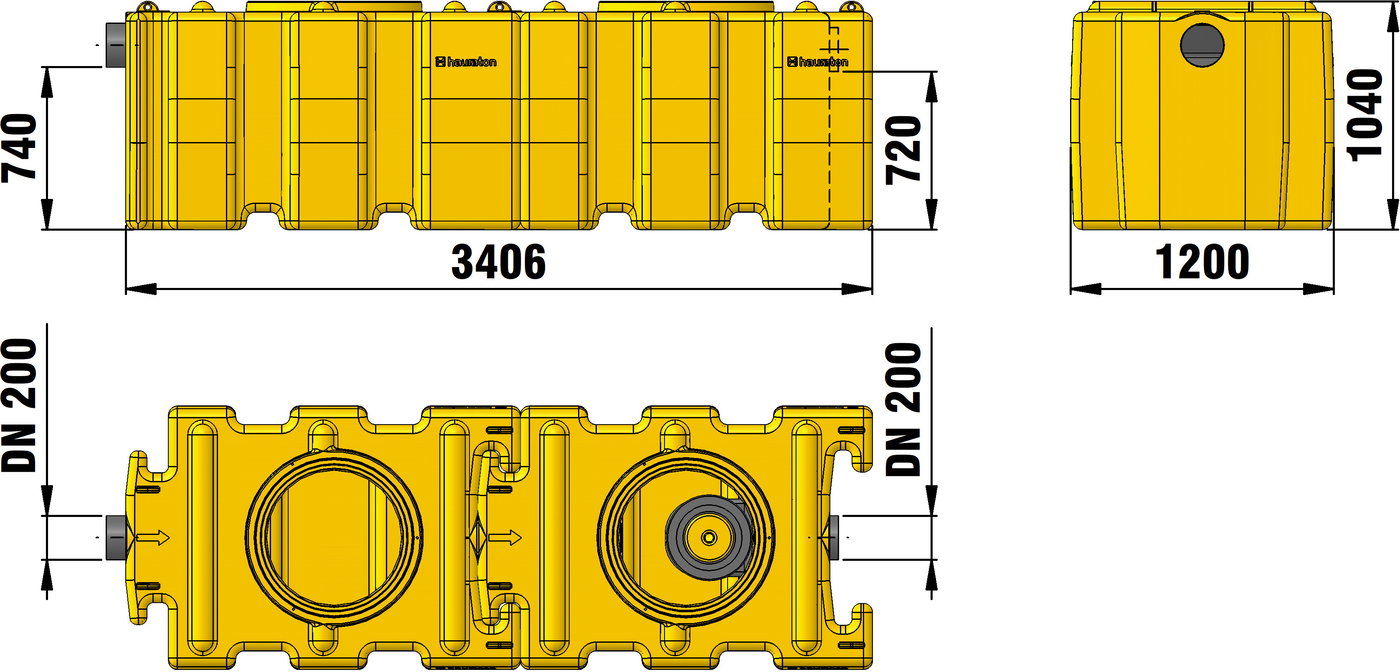

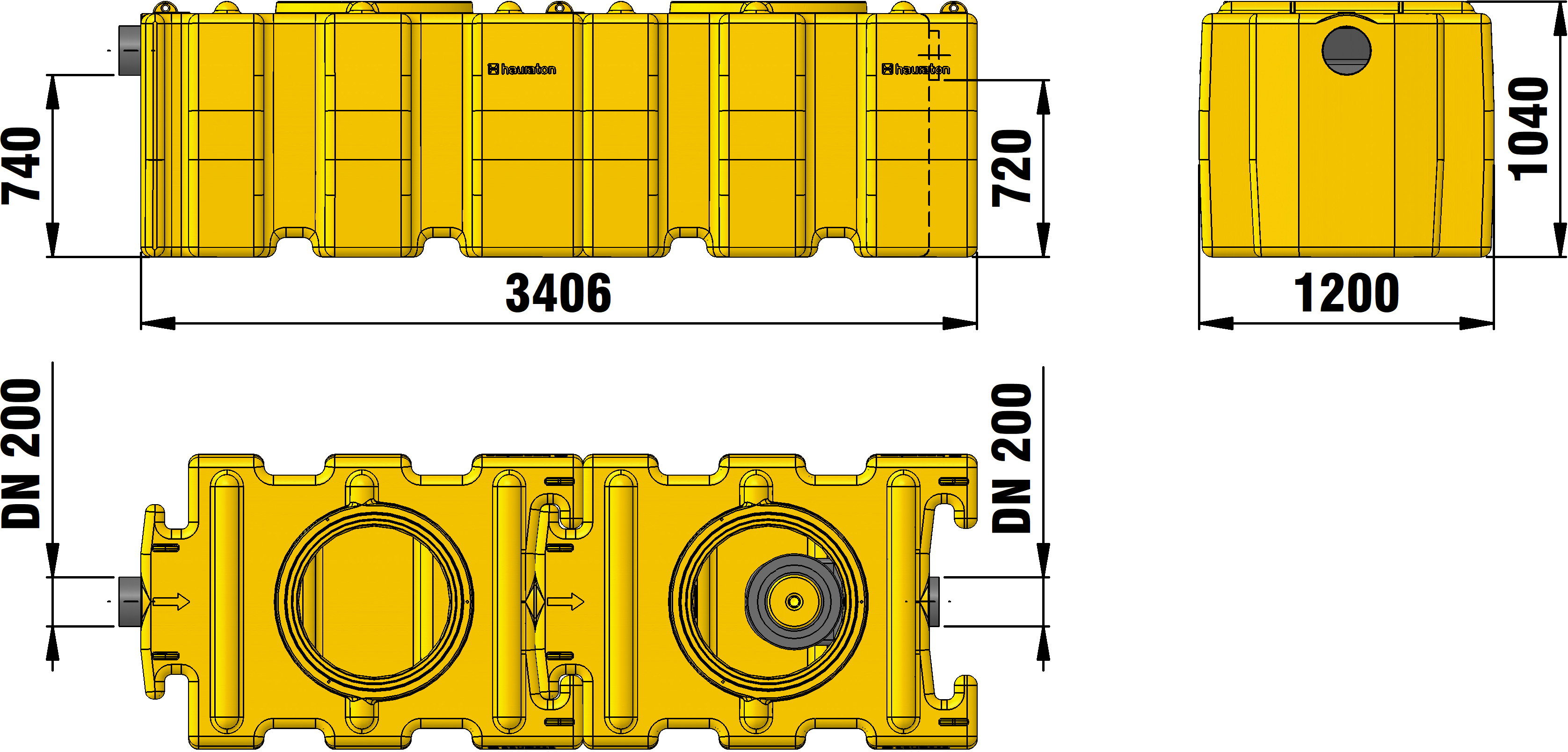

Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
383515
Length
3515 mm
Width
1200 mm
Height
1040 mm
Weight
241.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE
Nominal size
15,00 l/s
Bypass
without bypass
Flow performance
15.0 l/s
sludge trap capacity
-
separator capacity
2650 l
DN in-/outlet
200 mm
HE H inlet
740 mm
HA Höhe Auslauf
720 mm
DNE Manhole 1
700 mm
Regulations
EN 858
Sales text
AQUAFIX 10 PE Coalescence Separator KPE 15
Product description
AQUAFIX Coalescence Separator KPE 15, nominal size 15, acc. EN 858, oil separation system with less than 5 mg/l final oil content acc. DIN 38409, part 18, acc. Testing requirements EN 858, made of PE, wall thickness >= 10 mm, closure and coalescence part can be lifted out, pipe connection for KG-pipe DN/OD 200, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 3515 x 1200 x 1040 mm, weight 241 KG, item-no. 383515
Packaging unit
70
