Article No. 385302
AQUAFIX SFPE Grease separator with sludge trap
SFPE 02/0200
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

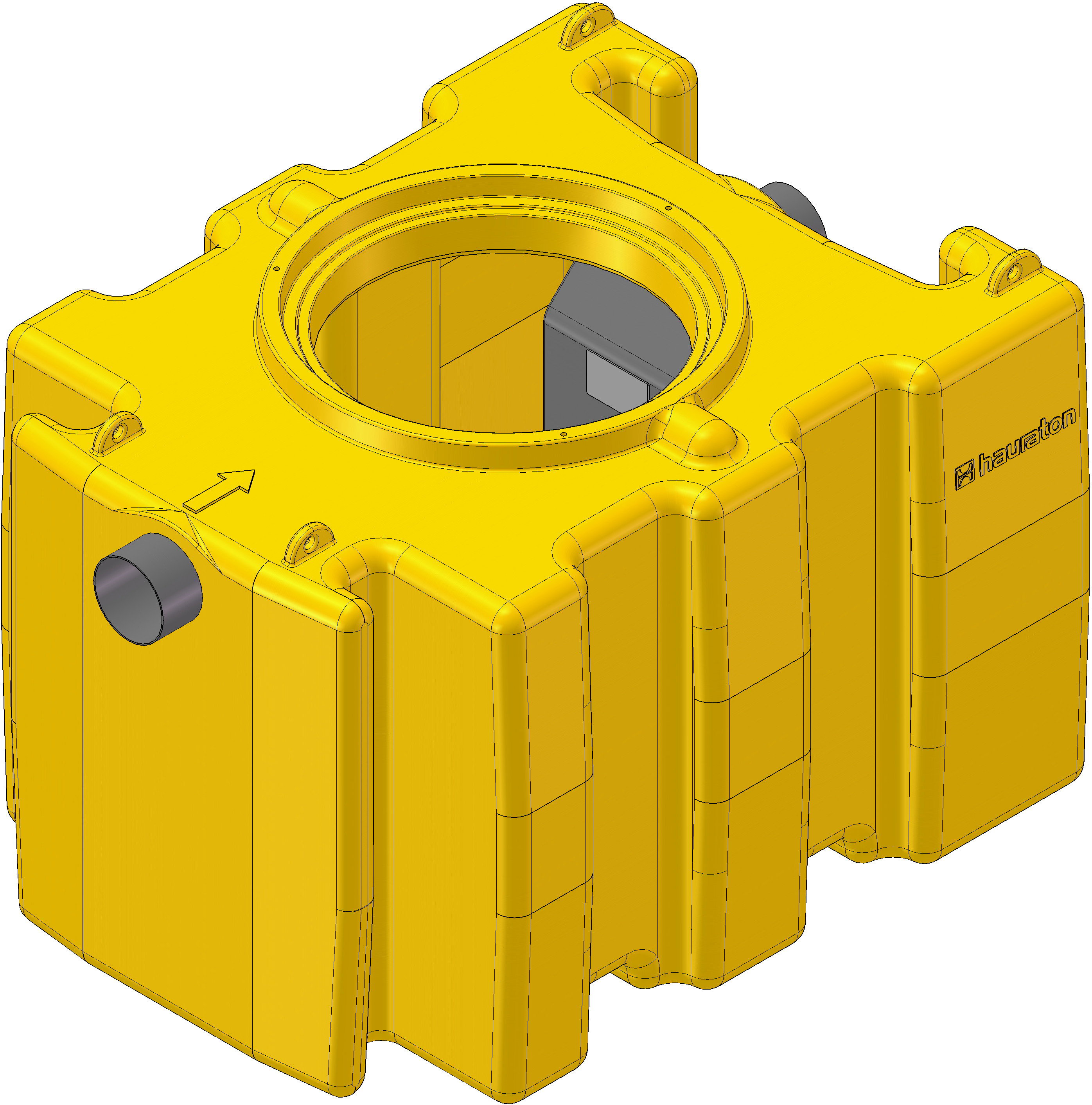

Product image
Technical information and metrics
Article No.
385302
Length
1675 mm
Width
1200 mm
Height
1040 mm
Weight
103.00 kg
Material
AQUAFIX PE
Nominal size
2,00 l/s
Bypass
without bypass
Flow performance
2.0 l/s
sludge trap capacity
200 l
Separator capacity
993 l
DN in-/outlet
160 mm
HE H inlet
800 mm
HA Höhe Auslauf
780 mm
DNE Manhole 1
700 mm
Regulations
EN 1825
Sales text
AQUAFIX 10 PE grease separator with sludge trap SFPE 02/0200
Product description
AQUAFIX Sludge-trap grease separator SFPE 02/0200, nominal size 2, nominal volume # l, acc. EN 1825, made of PE, wall thickness >= 10 mm, pipe connection for KG-pipe DN/OD 160, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 1675 x 1200 x 1040 mm, weight 103 KG, item-no. 385302
Packaging unit
70
