Article No. 385304
AQUAFIX SFPE Grease separator with sludge trap
SFPE 04/0400
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

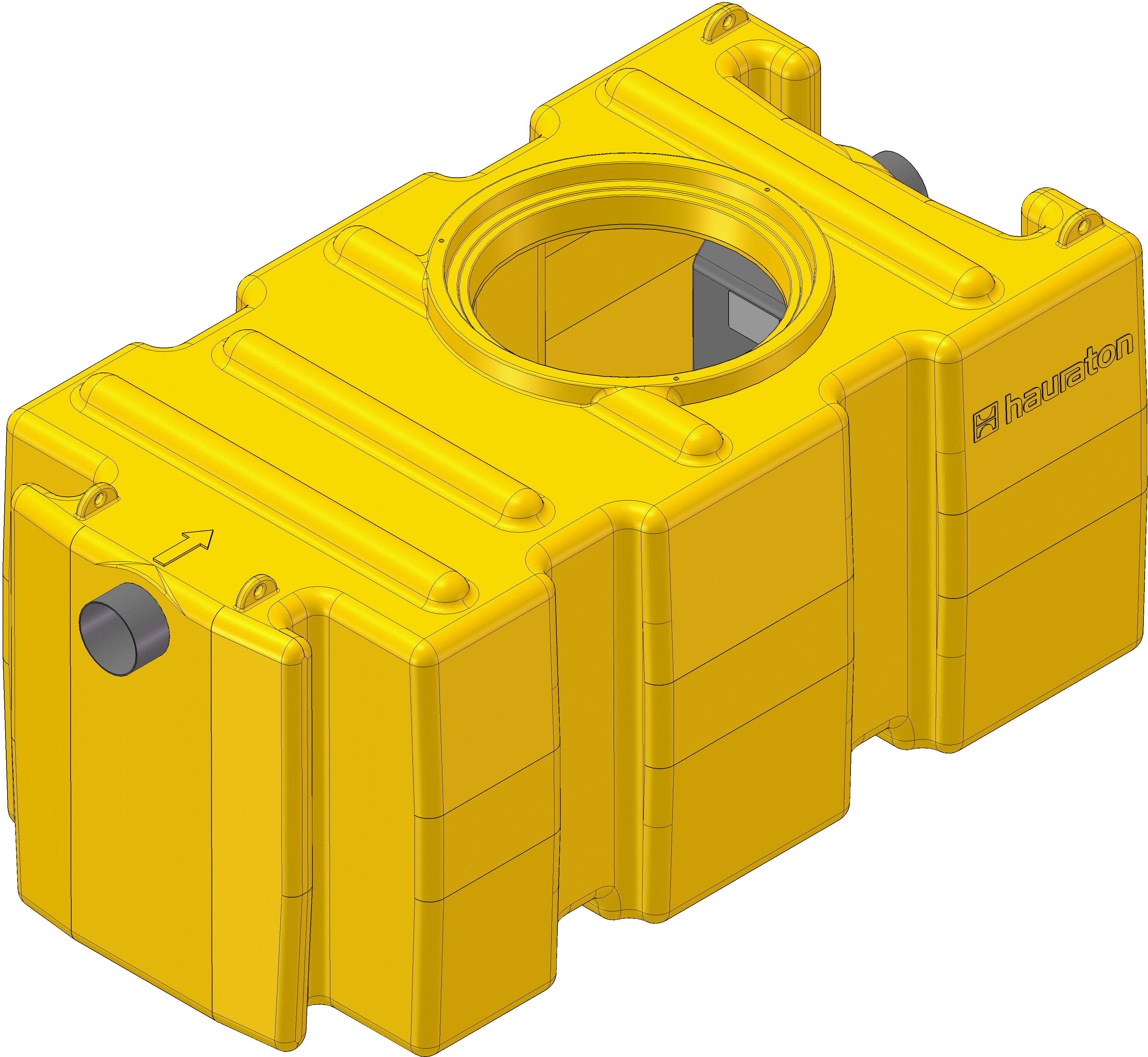

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
385304
Length
2335 mm
Width
1200 mm
Height
1040 mm
Weight
134.00 kg
Material
AQUAFIX PE
Nominal size
4,00 l/s
Bypass
without bypass
Flow performance
4.0 l/s
sludge trap capacity
400 l
separator capacity
1210 l
DN in-/outlet
160 mm
HE H inlet
800 mm
HA Höhe Auslauf
780 mm
DNE Manhole 1
700 mm
Regulations
EN 1825
Sales text
AQUAFIX 10 PE Grease separator with sludge trap SFPE 04/0400
Product description
AQUAFIX Sludge-trap grease separator SFPE 04/0400, nominal size 4, nominal volume # l, acc. EN 1825, made of PE, wall thickness >= 10 mm, pipe connection for KG-pipe DN/OD 160, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 2335 x 1200 x 1040 mm, weight 134 KG, item-no. 385304
Packaging unit
70
