Article No. 385310
AQUAFIX SFPE Grease separator with sludge trap
SFPE 10/1000
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

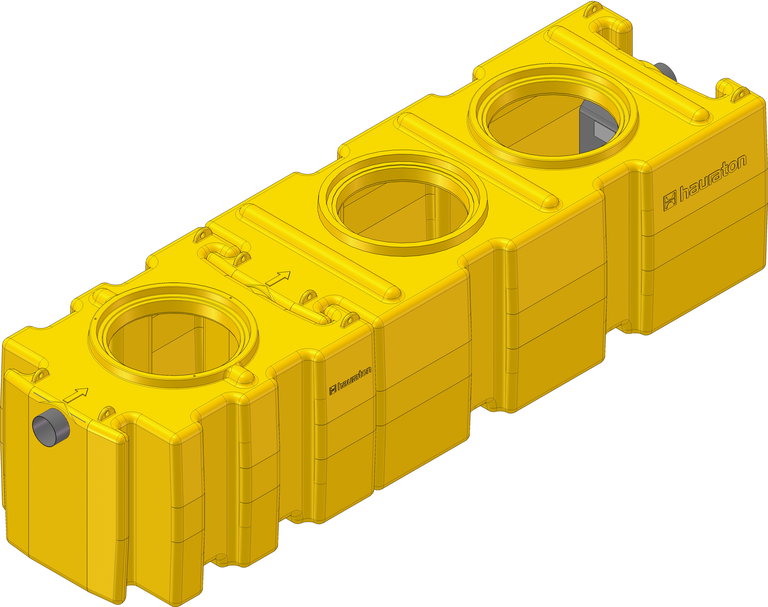

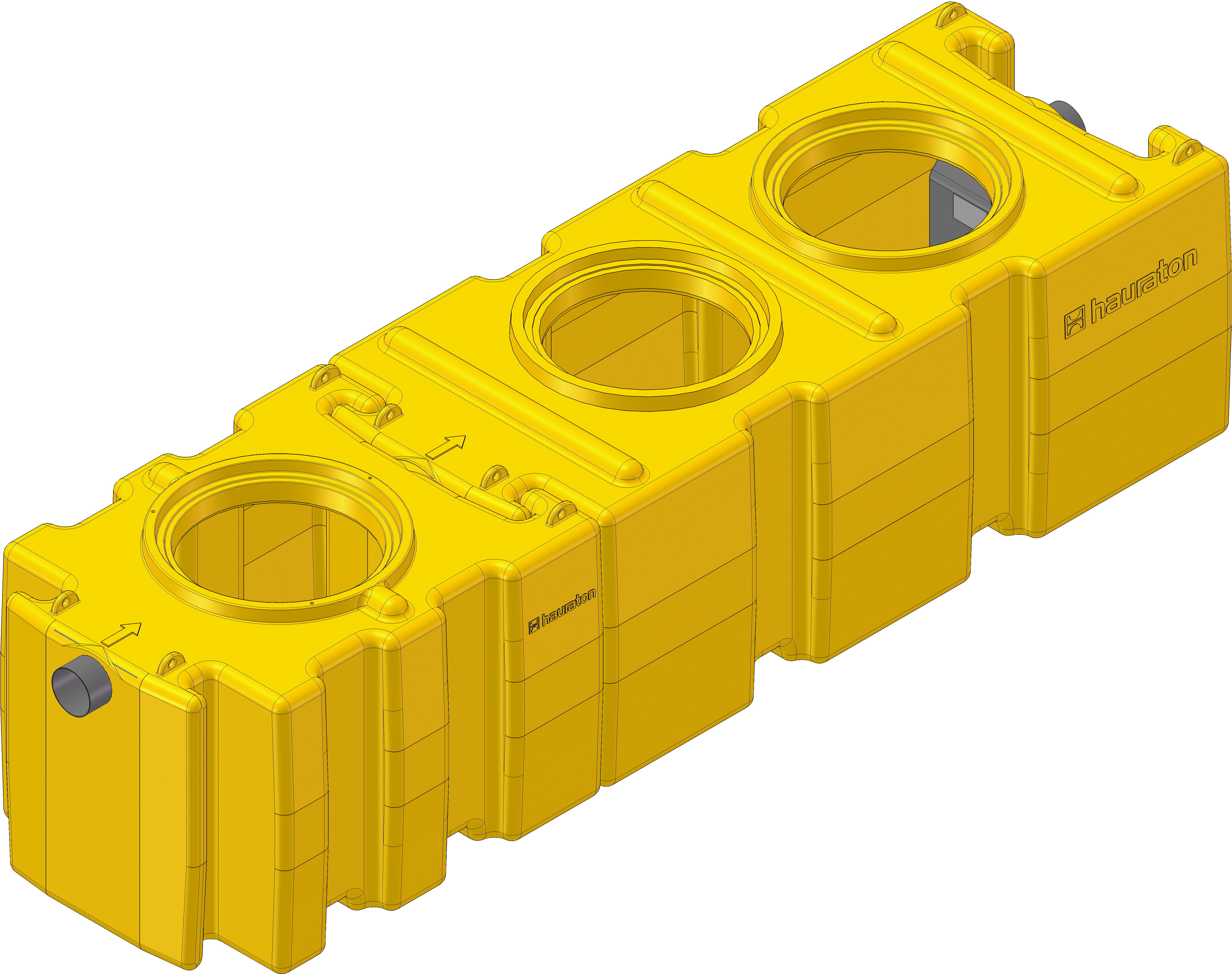

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
385310
Length
4280 mm
Width
1200 mm
Height
1040 mm
Weight
238.00 kg
Material
AQUAFIX PE
Nominal size
10,00 l/s
Bypass
without bypass
Flow performance
10.0 l/s
sludge trap capacity
1000 l
Separator capacity
2565 l
DN in-/outlet
160 mm
HE H inlet
810 mm
HA Höhe Auslauf
780 mm
DNE Manhole 1
700 mm
Regulations
EN 1825
Sales text
AQUAFIX 10 PE grease separator with sludge trap SFPE 10/1000
Product description
AQUAFIX Sludge-trap grease separator SFPE 10/1000, nominal size 10, nominal volume # l, acc. EN 1825, made of PE, wall thickness >= 10 mm, pipe connection for KG-pipe DN/OD 160, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 4280 x 1200 x 1040 mm, weight 238 KG, item-no. 385310
Packaging unit
70
