Article No. 175020H
AQUAFIX SK2BP Coalescence separator with sludge trap and double bypass
SK2BP 20/2000
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

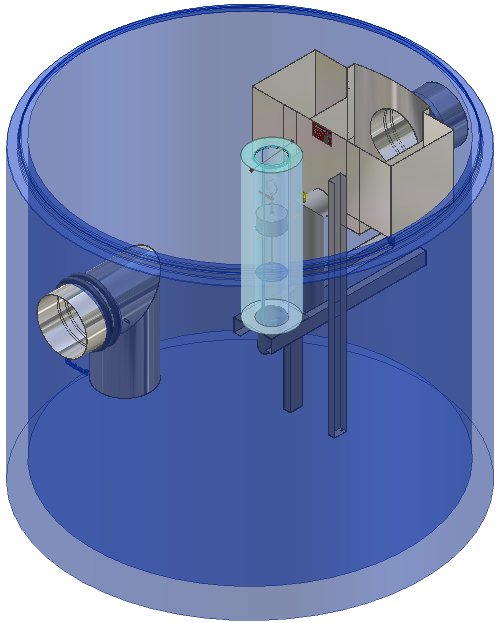

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
175020H
Length
2800 mm
Width
2800 mm
External diameter
2800 mm
Height
2750 mm
Weight
12015.00 kg
Material
AQUAFIX coalescence material, Polypropylene, Standard concrete acc. norm
Nominal size
20 l/s
Bypass
double bypass
Flow performance
200.0 l/s
sludge trap capacity
2000 l
separator capacity
6210 l
DN in-/outlet
500 mm
HE H inlet
1873 mm
HA Höhe Auslauf
1823 mm
DNE Manhole 1
1000 mm
Packaging unit
1
