Article No. 383608
AQUAFIX SKBPPE Coalescence separator with sludge trap and bypass
SKBPPE 08/0800
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

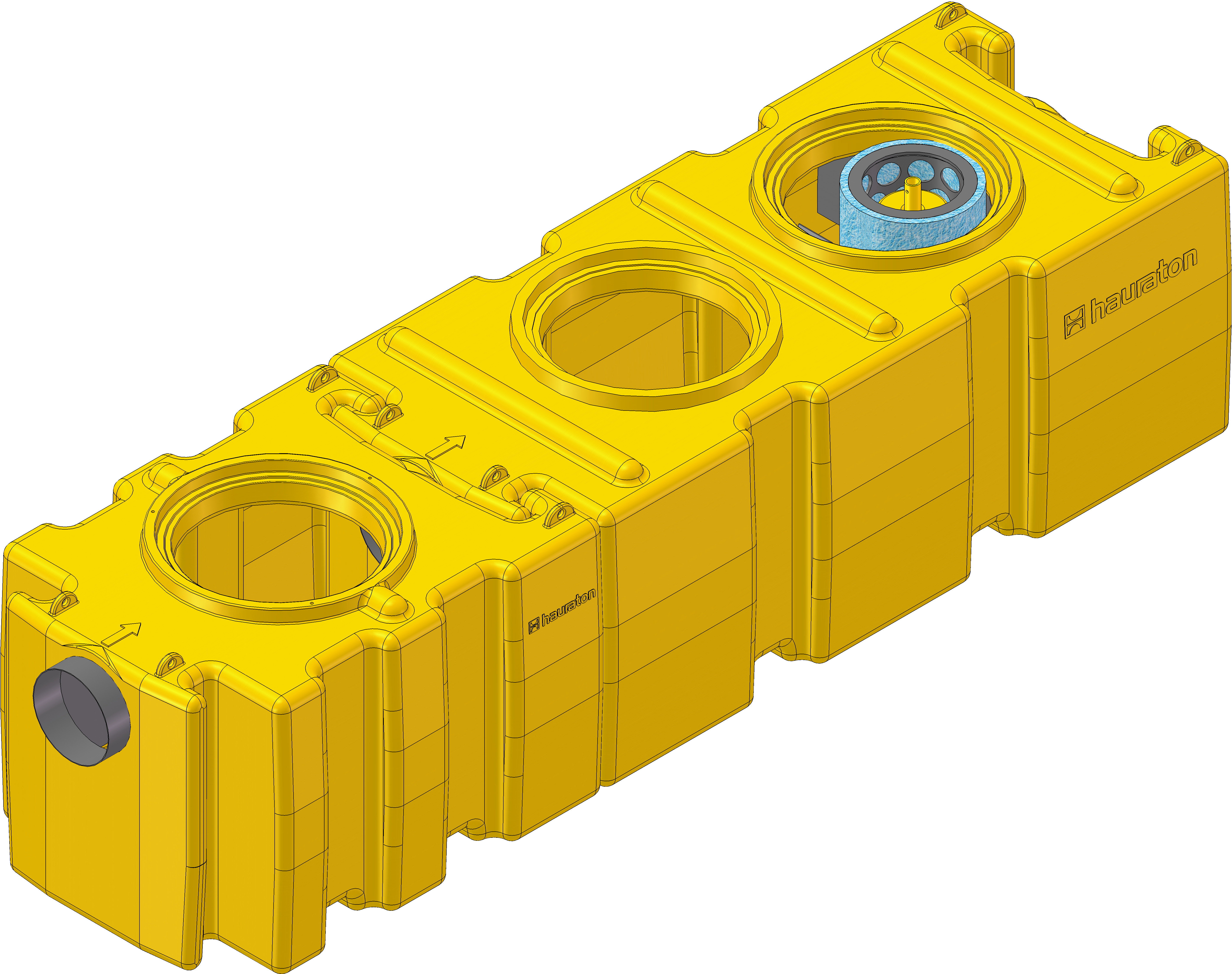

Product image
Technical information and metrics
Article No.
383608
Length
4255 mm
Width
1200 mm
Height
1040 mm
Weight
285.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE
Nominal size
8,00 l/s
Bypass
single bypass
Flow performance
40.0 l/s
sludge trap capacity
800 l
Separator capacity
2079 l
DN in-/outlet
315 mm
HE H inlet
650 mm
HA Höhe Auslauf
630 mm
DNE Manhole 1
700 mm
Regulations
EN 858
Sales text
AQUAFIX 10 PE coalescence separator with sludge trap and bypass SKBPPE 08/0800
Product description
AQUAFIX Sludge-trap Coalescence Separator SKBPPE 08/0800, nominal size 8, nominal volume 800, with integrated by-pass, acc. EN 858, oil separation system with less than 5 mg/l final oil content acc. DIN 38409, part 18, acc. testing requirements EN 858, made of PE, wall thickness >= 10 mm, closure and coalescence part can be lifted out, pipe connection for KG-pipe DN/OD 315, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 4255 x 1200 x 1040 mm, weight 285 KG, item-no. 383608
Packaging unit
70
