Article No. 383610
AQUAFIX SKBPPE Coalescence separator with sludge trap and bypass
SKBPPE 10/1000
Questions?
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

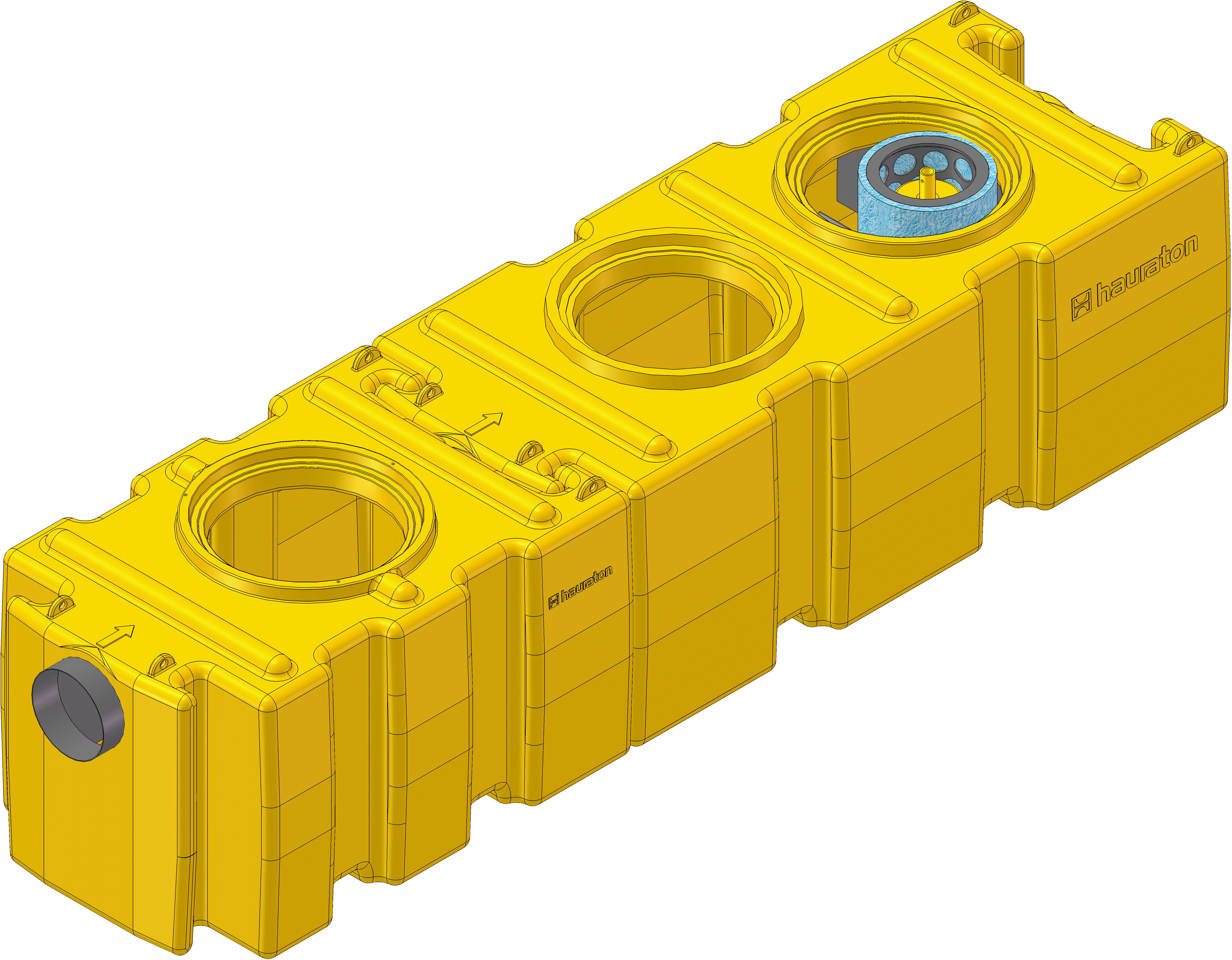

Product image
Technical information and metrics
Article No.
383610
Length
4505 mm
Width
1200 mm
Height
1040 mm
Weight
297.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE
Nominal size
10,00 l/s
Bypass
single bypass
Flow performance
50.0 l/s
sludge trap capacity
1000 l
Separator capacity
2074 l
DN in-/outlet
315 mm
HE H inlet
650 mm
HA Höhe Auslauf
630 mm
DNE Manhole 1
700 mm
Regulations
EN 858
Sales text
AQUAFIX 10 PE coalescence separator with sludge trap and bypass SKBPPE 10/1000
Product description
AQUAFIX Sludge-trap Coalescence Separator SKBPPE 10/1000, nominal size 10, nominal volume 1000, with integrated by-pass, acc. EN 858, oil separation system with less than 5 mg/l final oil content acc. DIN 38409, part 18, acc. testing requirements EN 858, made of PE, wall thickness >= 10 mm, closure and coalescence part can be lifted out, pipe connection for KG-pipe DN/OD 315, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 4505 x 1200 x 1040 mm, weight 297 KG, item-no. 383610
Packaging unit
70
