Article No. 384406
AQUAFIX SKmPPE Coalescence separator with sludge trap and pump chamber
SKmPPE 06/0600
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

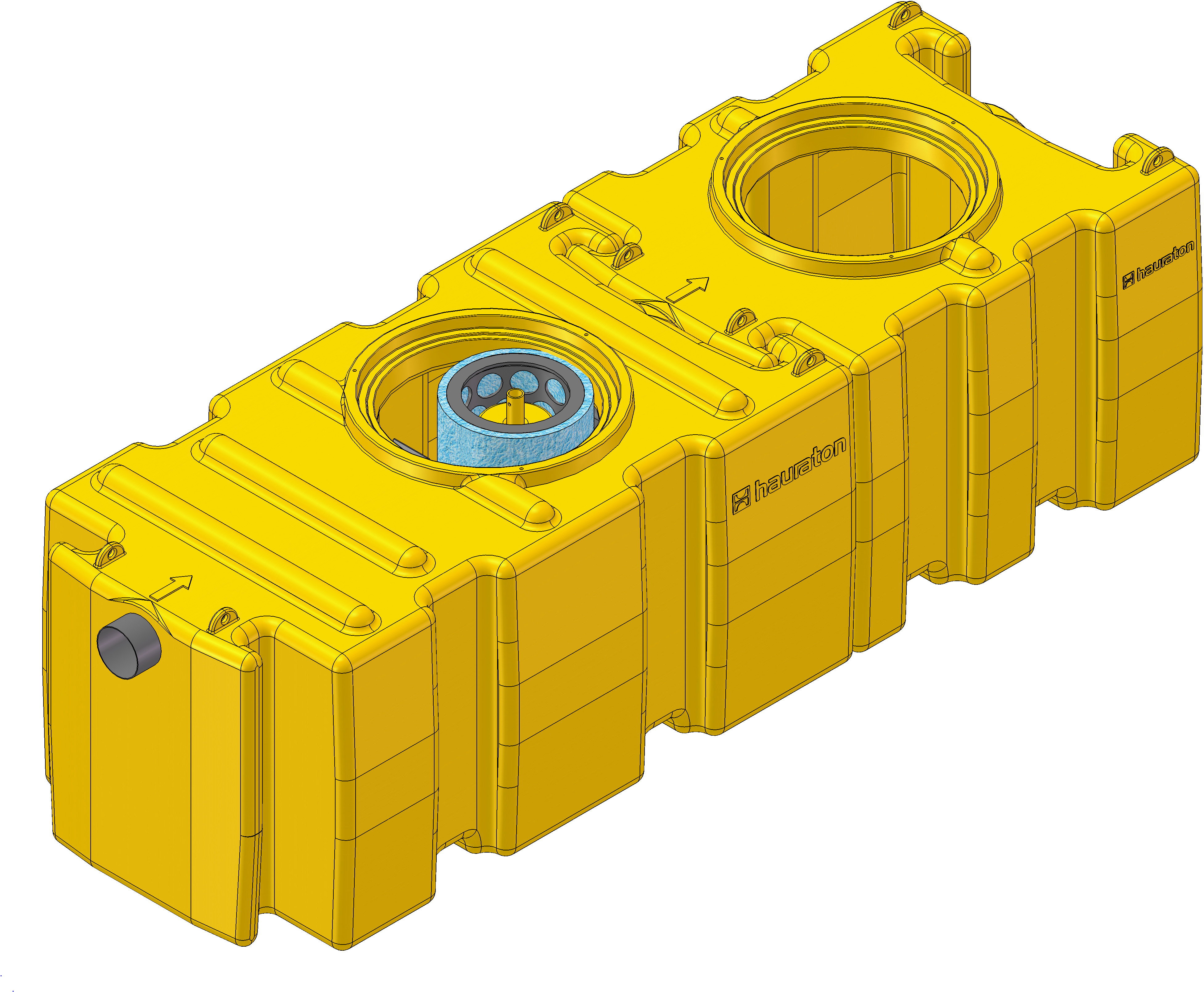

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
384406
Length
3655 mm
Width
1200 mm
Height
1040 mm
Weight
265.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE, PE-HD
Bypass
without bypass
Flow performance
0.0 l/s
sludge trap capacity
-
separator capacity
-
Regulations
EN 858
Sales text
AQUAFIX 10 PEcoalescence separator with sludge trap and pump chamber SKmPPE 06/0600
Product description
AQUAFIX Coalescence separator with sludge-trap and pump chamber SKmPPE 06/0600, nominal size 6, nominal volume 600 l, acc. EN 858, oil separation system with less than 5 mg/l final oil content acc. DIN 38409, part 18, acc. testing requirements EN 858, made of PE, wall thickness >= 10 mm, closure and coalescence part can be lifted out, pipe connection for KG-pipe DN/OD 160, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 3655 x 1200 x 1040 mm, weight 265 KG, item-no. 384406
Packaging unit
70
