Article No. 384003
AQUAFIX SKPE Coalescence separator with sludge trap
SKPE 03/0300
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

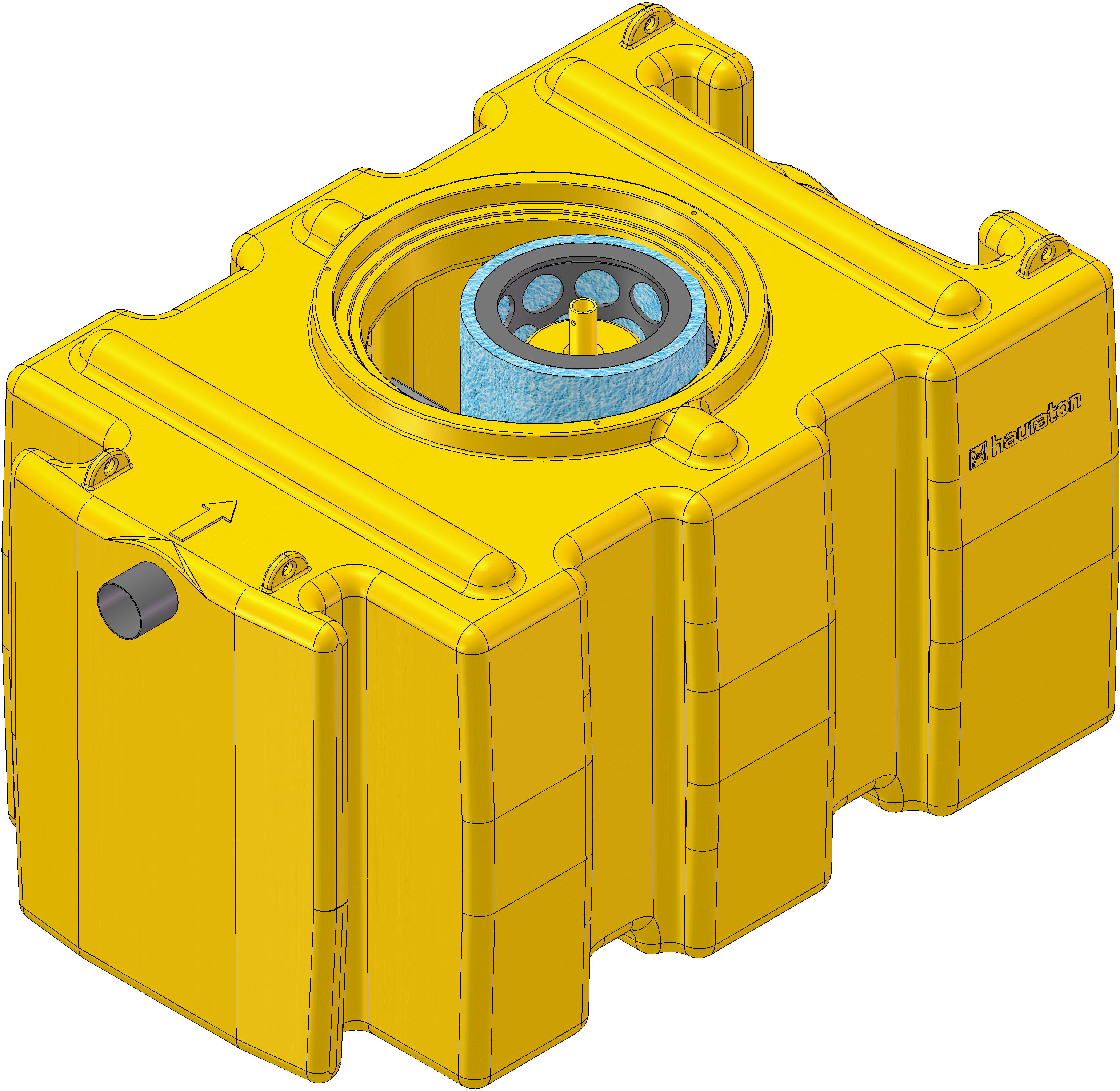

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
384003
Length
1895 mm
Width
1200 mm
Height
1040 mm
Weight
128.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE
Bypass
without bypass
Flow performance
0.0 l/s
sludge trap capacity
-
separator capacity
-
Regulations
EN 858
Regulations
AQUAFIX 10 PE coalescence separator with sludge trap SKPE 03/300
Regulations
AQUAFIX Sludge-trap Coalescence Separator SKPE 03/0300, nominal size 3, nominal volume 300 l, acc. EN 858, oil separation system with less than 5 mg/l final oil content acc. DIN 38409, part 18, acc. testing requirements EN 858, made of PE, wall thickness >= 10 mm, closure and coalescence part can be lifted out, pipe connection for KG-pipe DN/OD 110, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 1910 x 1200 x 1040 mm, weight 128 KG, item-no. 384003
Regulations
70
