Article No. 384008
AQUAFIX SKPE Coalescence separator with sludge trap
SKPE 08/0800
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

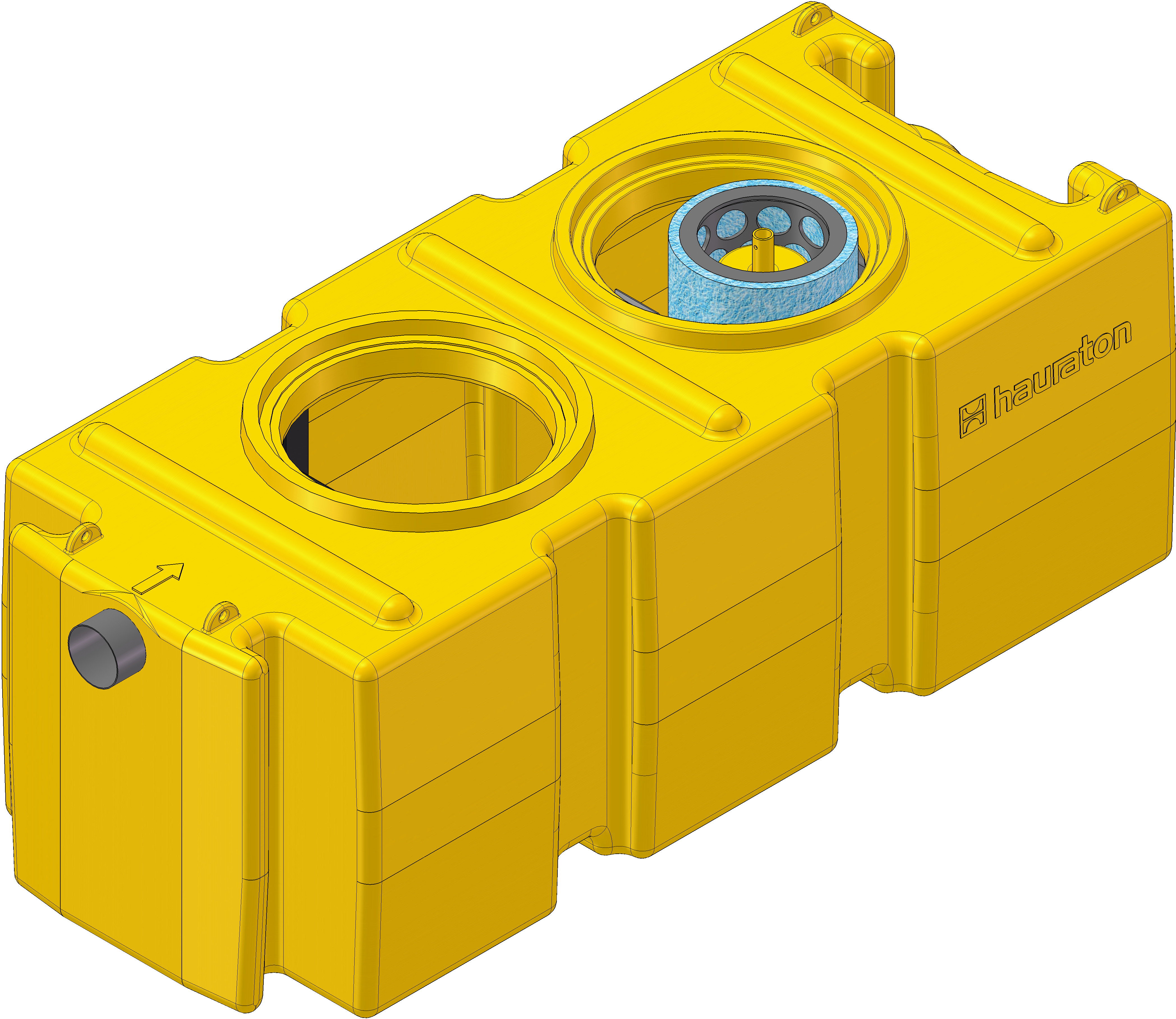

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
384008
Length
2910 mm
Width
1200 mm
Height
1040 mm
Weight
188.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE
Nominal size
8,00 l/s
Bypass
without bypass
Flow performance
8.0 l/s
sludge trap capacity
800 l
Separator capacity
1571 l
DN in-/outlet
160 mm
HE H inlet
800 mm
HA Höhe Auslauf
780 mm
DNE Manhole 1
700 mm
Regulations
EN 858
Sales text
AQUAFIX 10 PE coalescence separator with sludge trap SKPE 08/0800
Product description
AQUAFIX Sludge-trap Coalescence Separator SKPE 08/0800, nominal size 8, nominal volume 800 l, acc. EN 858, oil separation system with less than 5 mg/l final oil content acc. DIN 38409, part 18, acc. testing requirements EN 858, made of PE, wall thickness >= 10 mm, closure and coalescence part can be lifted out, pipe connection for KG-pipe DN/OD 160, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 2910 x 1200 x 1040 mm, weight 188 KG, item-no. 384008
Packaging unit
70
