Article No. 384010
AQUAFIX SKPE Coalescence separator with sludge trap
SKPE 10/1000
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

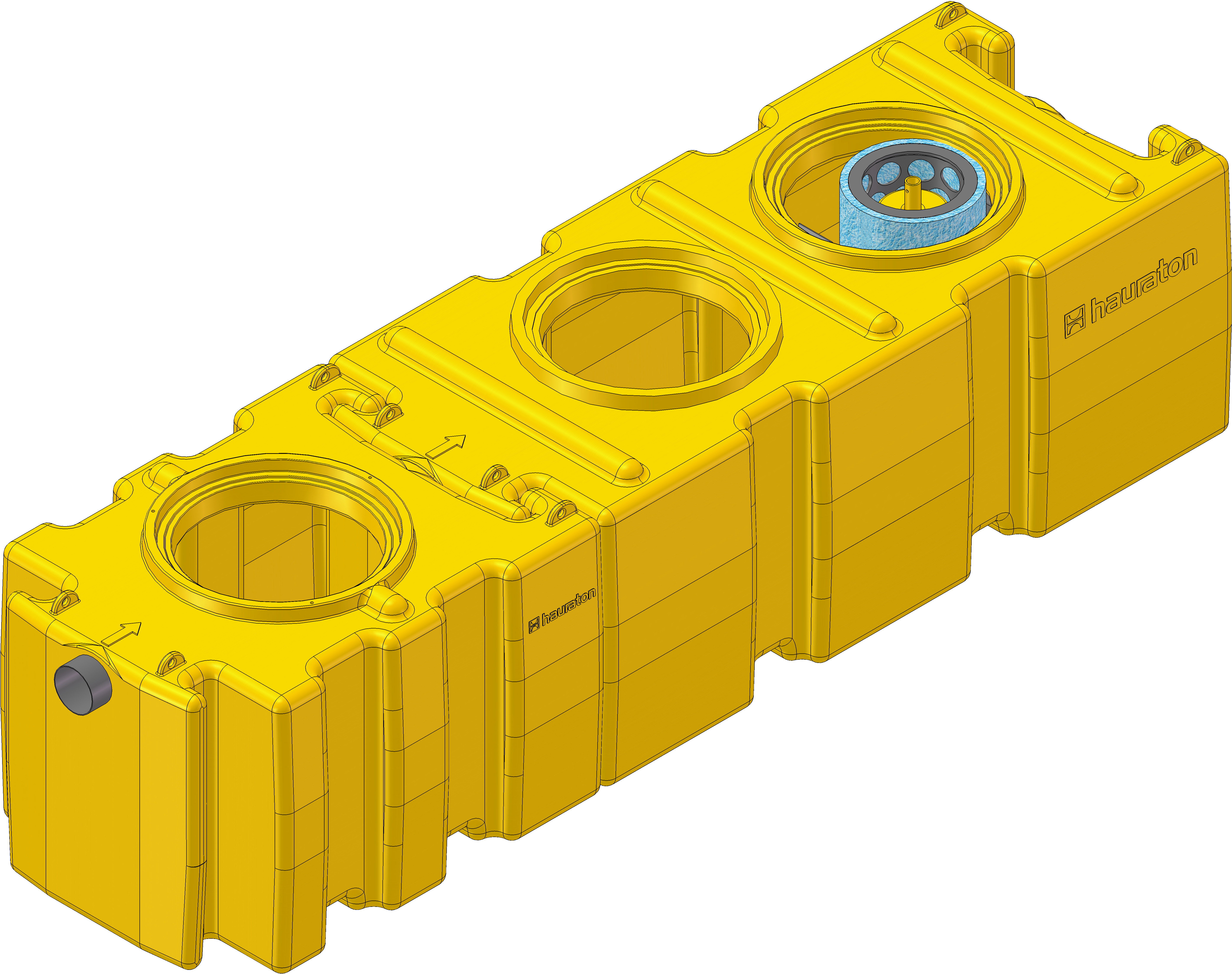

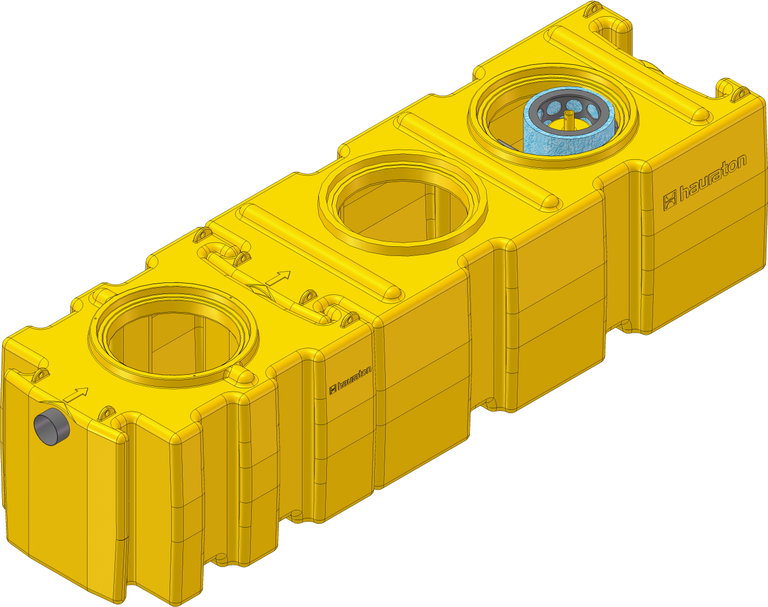

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
384010
Length
4255 mm
Width
1200 mm
Height
1040 mm
Weight
280.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE
Nominal size
10,00 l/s
Bypass
without bypass
Flow performance
10.0 l/s
sludge trap capacity
1000 l
Separator capacity
2565 l
DN in-/outlet
160 mm
HE H inlet
810 mm
HA Höhe Auslauf
780 mm
DNE Manhole 1
700 mm
Regulations
EN 858
Sales text
AQUAFIX 10 PE coalescence separator with sludge trap SKPE 10/1000
Product description
AQUAFIX Sludge-trap Coalescence Separator SKPE 10/1000, nominal size 10, nominal volume 1000 l, acc. EN 858, oil separation system with less than 5 mg/l final oil content acc. DIN 38409, part 18, acc. testing requirements EN 858, made of PE, wall thickness >= 10 mm, closure and coalescence part can be lifted out, pipe connection for KG-pipe DN/OD 160, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 4255 x 1200 x 1040 mm, weight 280 KG, item-no. 384010
Packaging unit
70
