Article No. 384015
AQUAFIX SKPE Coalescence separator with sludge trap
SKPE 15/1500
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

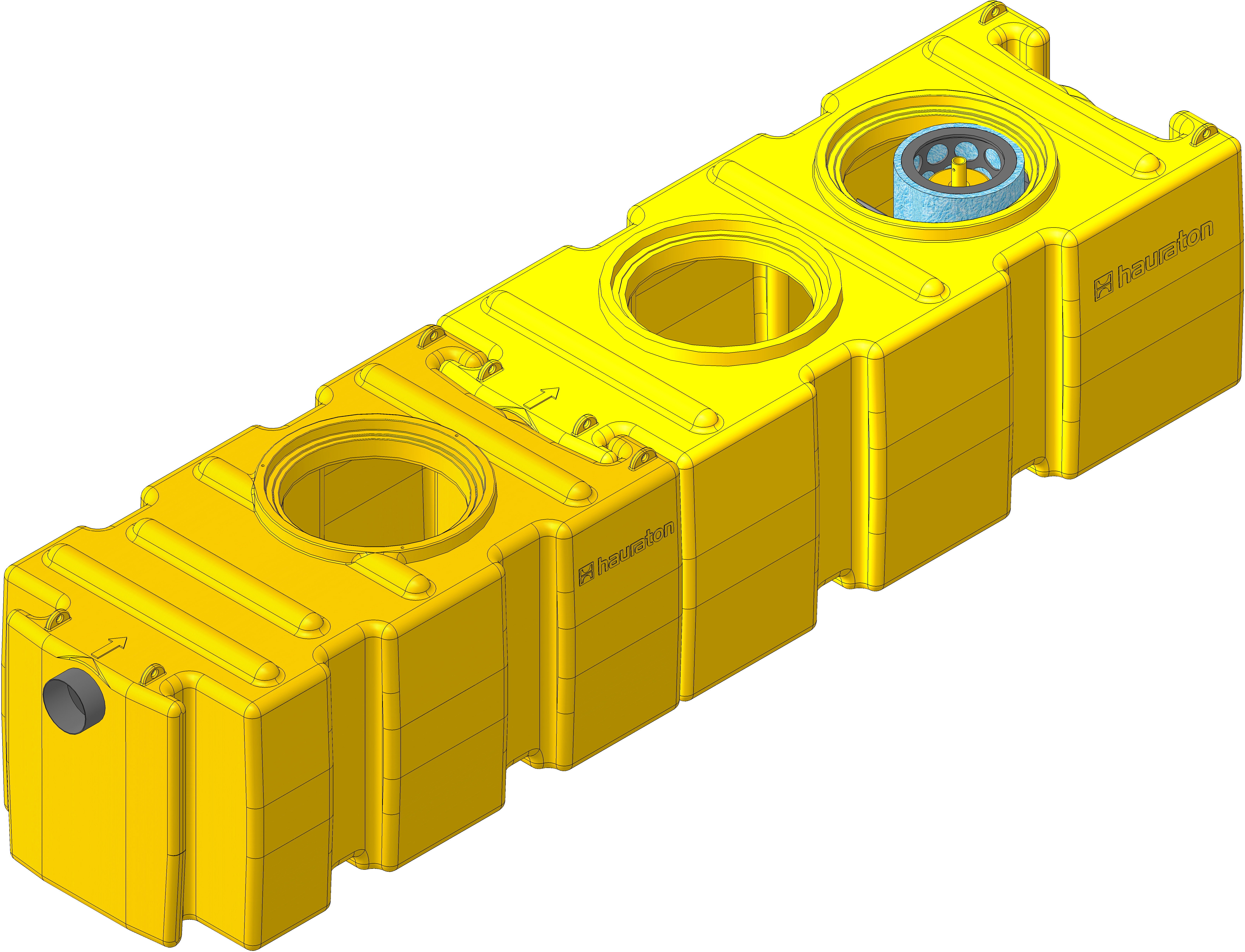

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
384015
Length
4915 mm
Width
1200 mm
Height
1040 mm
Weight
301.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE
Nominal size
15,00 l/s
Bypass
without bypass
Flow performance
15.0 l/s
sludge trap capacity
1500 l
Separator capacity
2359 l
DN in-/outlet
200 mm
HE H inlet
780 mm
HA Höhe Auslauf
760 mm
DNE Manhole 1
700 mm
Regulations
EN 858
Sales text
AQUAFIX 10 PE coalescence separator with sludge trap SKPE 15/1500
Product description
AQUAFIX Sludge-trap Coalescence Separator SKPE 15/1500, nominal size 15, nominal volume 1500 l, acc. EN 858, oil separation system with less than 5 mg/l final oil content acc. DIN 38409, part 18, acc. testing requirements EN 858, made of PE, wall thickness >= 10 mm, closure and coalescence part can be lifted out, pipe connection for KG-pipe DN/OD 200, connection of other pipes possible with pipe connectors, overall dimensions LxWxH 4915 x 1200 x 1040 mm, weight 301 KG, item-no. 384015
Packaging unit
70
