Article No. 65035

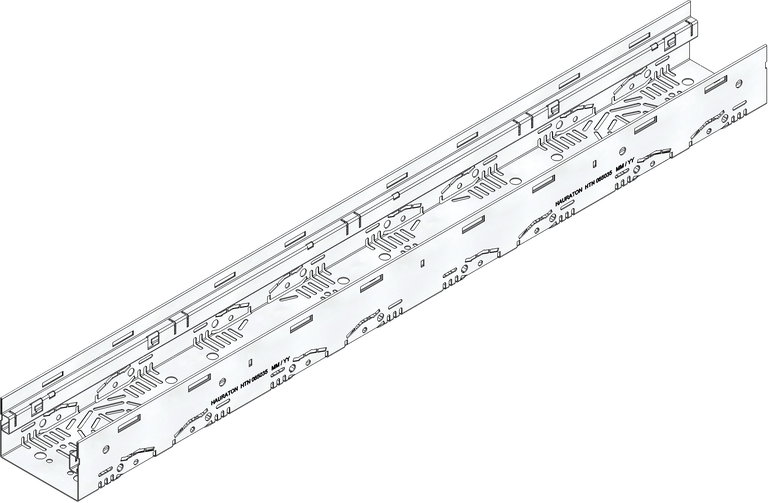

DACHFIX STEEL 115, height 75 mm
Type 75, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65035
Length
1000 mm
Width
115 mm
Height
75 mm
Weight
2.59 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
115
Internal channel cross-section
60 cm²
Fall
-
Regulations
Locking handle
Regulations
M
Channel material
Stainless steel 1.4301
Regulations
DACHFIX STEEL 115 Channel body type 75, stainless steel, installation height 75 mm, 1 m
Regulations
DACHFIX STEEL 115 Channel type 75, stainless steel CNS 1.4301 (AISI 304), walkable and wheelchair-accessible respectively, grating support tilted inwards, with perforation on both sides as well as in channel base integrated perforation for on-site performing connection for pipe spigots of DN/OD 75 or DN/OD 110, L/W/H 1000x115x75 mm, Item No. 65035
