Article No. 66170
DACHFIX STEEL 135, height 150 mm
Type 150, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

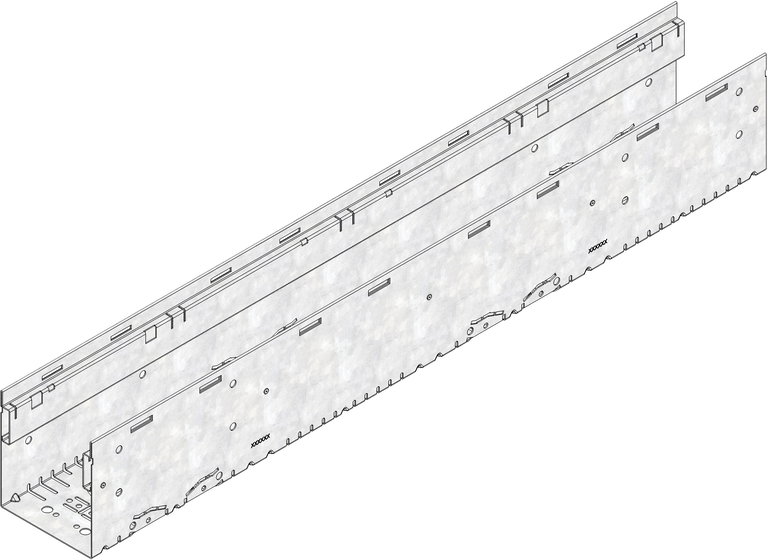

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
66170
Length
1000 mm
Width
135 mm
Height
150 mm
Weight
5.58 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
-
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 135 Channel type 150, galvanised, installation height 150 mm, 1 m
Product description
STEELFIX REGULAR 135 channel type 150, made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, grating support tilted inwards, channel base and channel wall closed L/W/H 1000x135x150 mm, item no. 66170
Packaging unit
-
Tender Texts
Installation instructions
Installation example
wheelchair accessible, drainage without channel connection
wheelchair accessible, drainage via drain box, vertical connection
wheelchair accessible, drainage via drain box, horizontal connection
Wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)
wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)
flagstone surface class Walkable
wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection
Wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
