Article No. 65185
DACHFIX STEEL 135, height 150 mm
Type 150, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

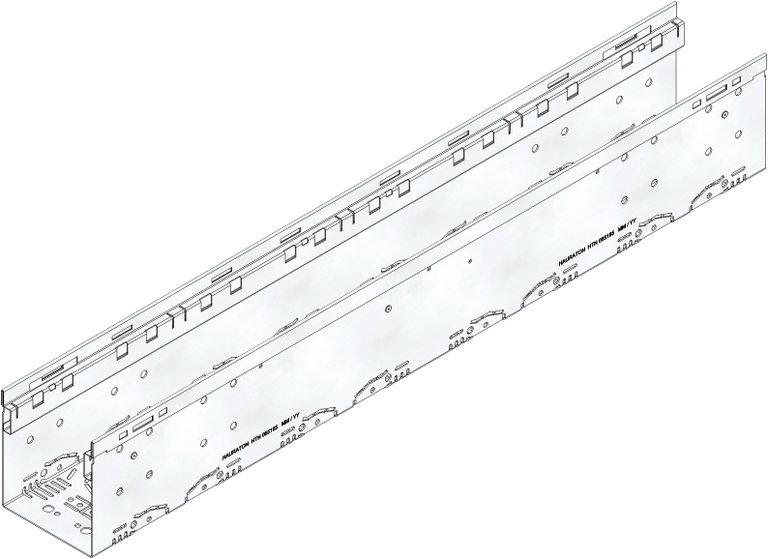

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65185
Length
1000 mm
Width
135 mm
Height
150 mm
Weight
6.05 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
169 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
DACHFIX STEEL Channel 135 Type 150 stainless steel, height 150 mm, L 1,0 m
Product description
DACHFIX STEEL 135 - channel type 150, made of stainless steel CNS 1.4301 (AISI 304), suitable for pedestrian traffic and wheelchair-accessible, grating support tilted inwards, with two-sided perforation as well as in channel base integrated perforation for on-site performing for pipe connection element of DN/OD 75 or DN/OD 110, L/W/H 1000x135x150 mm, item no. 65185
Packaging unit
112
Tender Texts
Installation instructions
Installation example
wheelchair accessible, drainage without channel connection
wheelchair accessible, drainage via drain box, vertical connection
wheelchair accessible, drainage via drain box, horizontal connection
Wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)
wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)
flagstone surface class Walkable
wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection
Wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
