Article No. 65135
DACHFIX STEEL 135, height 75 mm
Type 75, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

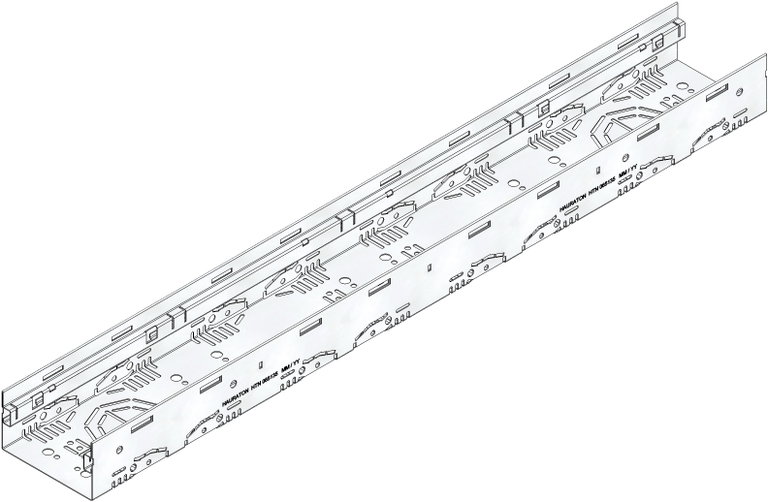

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65135
Length
1000 mm
Width
135 mm
Height
75 mm
Weight
2.78 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
135
Internal channel cross-section
71 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
DACHFIX STEEL Channel 135 Type 75 stainless steel, height 75 mm, L 1,0 m
Product description
DACHFIX STEEL 135 Channel type 75, stainless steel CNS 1.4301 (AISI 304), walkable and wheelchair-accessible respectively, grating support tilted inwards, with perforation on both sides as well as in channel base integrated perforation for on-site performing connection for pipe spigots of DN/OD 75 or DN/OD 110, L/W/H 1000x135x75 mm, Item No. 65135
