Article No. 69001
DACHFIX STEEL 135
Mesh grating MW 30/10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

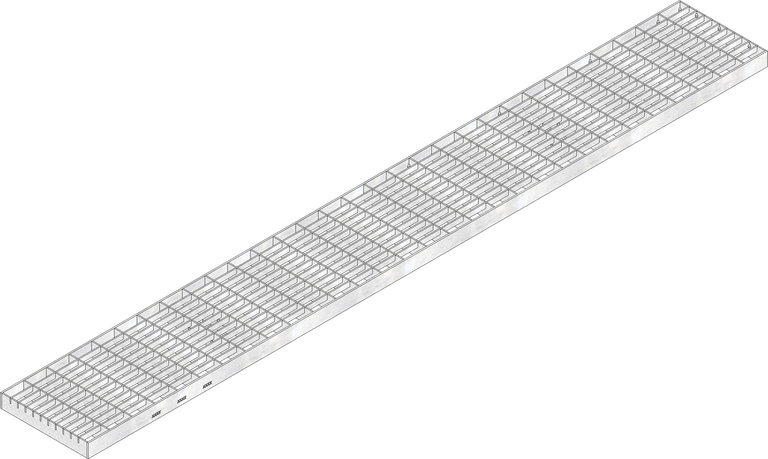

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
69001
Length
1000 mm
Width
129 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.61 kg
Material
hot-dip galvanised steel
Intake cross-section
1055.0 cm²/m
Nominal size
135
Inlet opening
30 x 10 mm
Fixing type
Locking handle
Material grating
hot-dip galvanised steel
Sales text
DACHFIX STEEL/STEELFIX REGULAR 135 mesh grating, MW 30/10, cl. A 15, galvanised, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 135 -mesh grating, MW 30/10, galvanised, loading class A 15, with double bolting point, length 1000 mm, Item No. 69001
Packaging unit
252
