Article No. 69048
DACHFIX STEEL 155
Longitudinal grating bar distance 10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

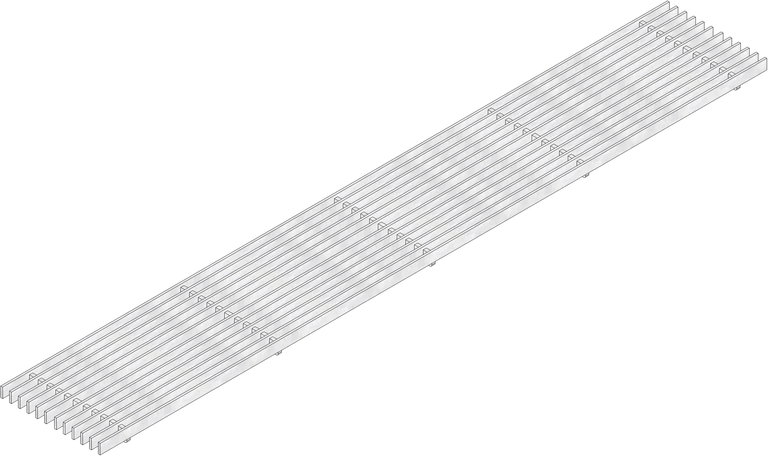

Product image
Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69048
Length
1000 mm
Width
149 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
4.91 kg
Material
hot-dip galvanised steel
Intake cross-section
1099.0 cm²/m
Nominal size
155
Inlet opening
10 x 0 mm
Regulations
Locking handle
Material grating
hot-dip galvanised steel
Regulations
Longitudinal grating bar distance 10 mm, galvanised, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 155, 1 m
Regulations
DACHFIX STEEL/STEELFIX REGULAR 155 -longitudinal grating, bar distance 10 mm, galvanised, loading class A 15, installation length 1000 mm, item no. 69048
Regulations
202
