Article No. 69058
DACHFIX STEEL 155
Longitudinal grating, bar distance 10 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Top view

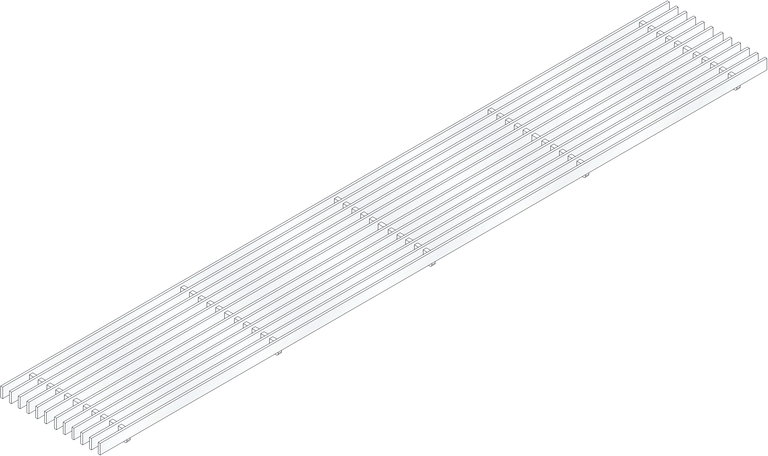

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69058
Length
1000 mm
Width
149 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
4.66 kg
Material
Stainless steel 1.4301
Intake cross-section
1099.0 cm²/m
Nominal size
155
Inlet opening
10 x 0 mm
Fixing type
Locking handle
Material grating
Stainless steel 1.4301
Sales text
Longitudinal grating, bar distance 10 mm, stainless steel, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 155, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 155 -longitudinal grating, bar distance 10 mm, stainless steel CNS 1.4301 (AISI 304), loading capacity A 15, installation length 1000 mm, item no. 69058
Packaging unit
360
