Article No. 65350
DACHFIX STEEL 205, height 100 mm
Type 100, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65350
Length
1000 mm
Width
205 mm
Height
100 mm
Weight
5.70 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
205
Internal channel cross-section
159 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL Channel 205 Type 100 galvanised, height 100 mm, L 1,0 m
Product description

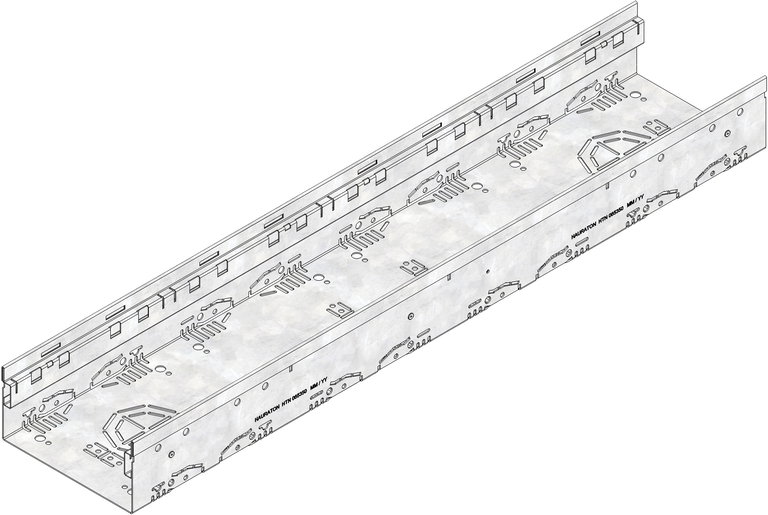

DACHFIX STEEL 205 - Channel type 100, made of corrosion-resistant galvanised steel, walkable and wheelchair-accessible respectively, grating support tilted inwards, with perforation on both sides as well as in channel base integrated perforation for on-site performing connection for pipe spigots of DN/OD 75 or DN/OD 110, L/W/H 1000x205x100 mm, Item No. 65350
Packaging unit
100
