Article No. 65300

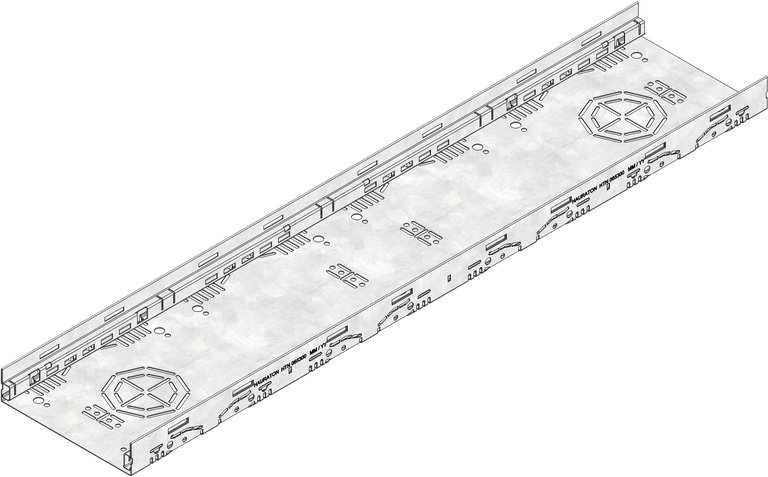

DACHFIX STEEL 205, height 45 mm
Type 45, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65300
Length
1000 mm
Width
205 mm
Height
45 mm
Weight
2.84 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
205
Internal channel cross-section
49 cm²
Fall
-
Regulations
Locking handle
Regulations
M
Channel material
strip galvanized steel
Regulations
DACHFIX STEEL Channel 205 type 45 galvanised, height 45 mm, L 1,0 m
Regulations
DACHFIX STEEL 205 - Channel type 45, made of corrosion-resistant galvanised steel, walkable and wheelchair-accessible respectively, grating support tilted inwards, with perforation on both sides as well as in channel base integrated perforation for on-site performing connection for pipe spigots of DN/OD 75 or DN/OD 110, L/W/H 1000x205x45 mm, Item No. 65300
