Article No. 69050
DACHFIX STEEL 255
Longitudinal grating bar distance 12 mm, galvansied, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Top view

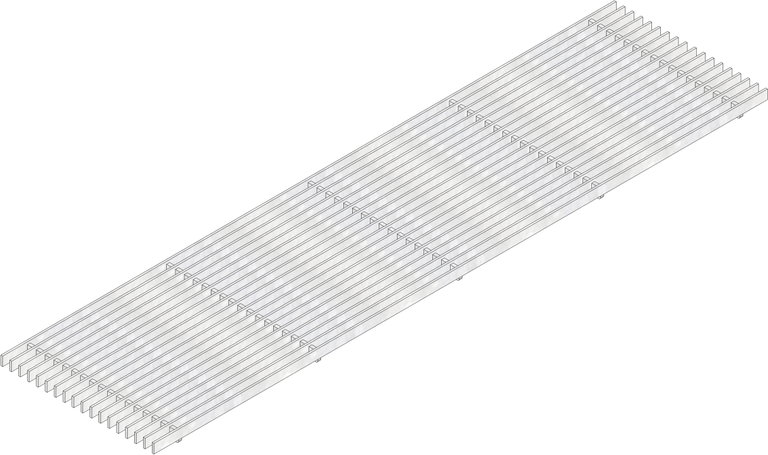

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
69050
Length
1000 mm
Width
249 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
7.55 kg
Material
hot-dip galvanised steel
Intake cross-section
1898.0 cm²/m
Nominal size
255
Inlet opening
12 x 0 mm
Fixing type
Locking handle
Material grating
hot-dip galvanised steel
Sales text
Longitudinal grating bar distance 12 mm, galvanised, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 255, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR/AIR 255 -longitudinal grating, bar distance 12 mm, galvanised, loading class A 15, installation length 1000 mm, item no. 69050
Packaging unit
140
