Article No. 69004
DACHFIX STEEL 255
Mesh grating MW 30/10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

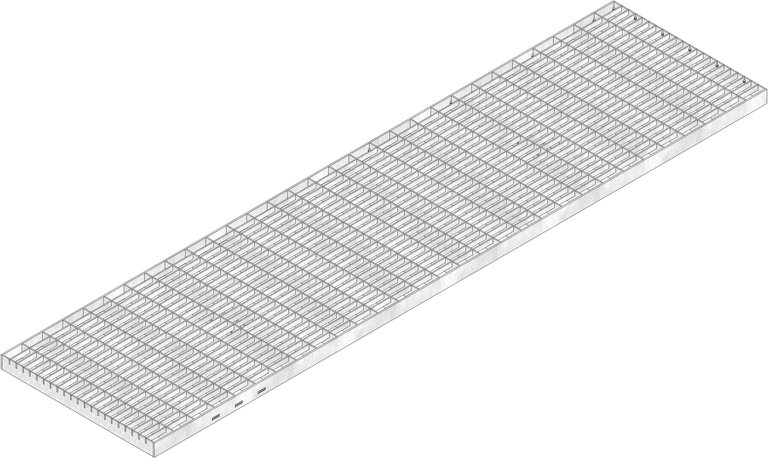

Product image
Top view
Technical drawing
Drawing
Data Sheet
Technical information and metrics
Article No.
69004
Length
1000 mm
Width
250 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
4.54 kg
Material
hot-dip galvanised steel
Intake cross-section
2020.0 cm²/m
Nominal size
255
Inlet opening
30 x 10 mm
Fixing type
Locking handle
Material grating
hot-dip galvanised steel
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. A 15, 2-fold screwable, DACHFIX STEEL / STEELFIX REGULAR/AIR 255, 1 m
Product description
DACHFIX STEEL / STEELFIX REGULAR/AIR 255 -mesh grating, MW 30/10, galvanised, loading class A 15, with double bolting point, length 1000 mm, Item No. 69004
Packaging unit
120
