Article No. 65073
DACHFIX STEEL Cross-intersection
as channel, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

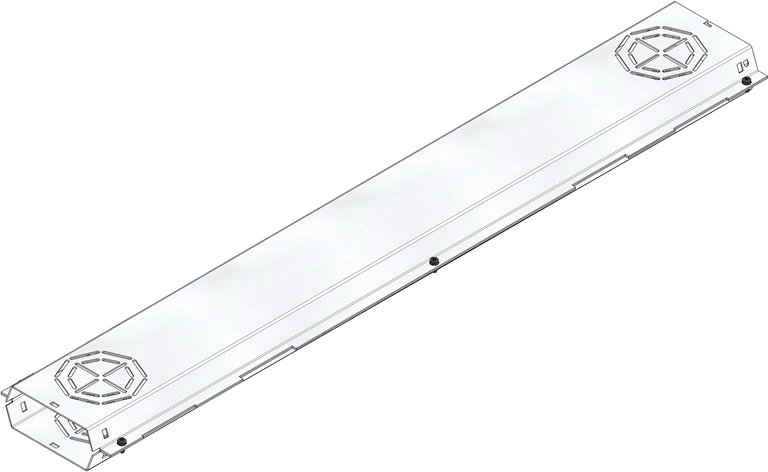

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
65073
Length
1000 mm
Width
165 mm
Height
58 mm
Weight
4.49 kg
Material
Stainless steel 1.4301
Nominal size
115, 135, 155, 205, 255
Sales text
Cross-intersection (channel), stainless steel, trapezoidal conical shape/hat profile, doubled variant as closed flat duct, DACHFIX STEEL/STEELFIX REGULAR, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR -cross-intersection, stainless steel CNS 1.4301 (AISI 304), as hat profile, with flat trough as closed flat duct, conical shape, pluggable and fixable, with connection possibility DN 110 as an inlet and as an outlet, L/W/H 1000x169x58 mm, item no. 65073
Packaging unit
-
Tender Texts
Installation example
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection
wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
wheelchair accessible, drainage without channel connection
wheelchair accessible, drainage via drain box, vertical connection
wheelchair accessible, drainage via drain box, horizontal connection
wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)
flagstone surface class Walkable, wheelchair accessible
