Article No. 65327
DACHFIX Drain box, grating
Mesh grating MW 30/10 mm, galvanised
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
65327
Length
290 mm
Width
290 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
2.08 kg
Material
hot-dip galvanised steel
Intake cross-section
2257.0 cm²/m
Inlet opening
30 x 10 mm
Material grating
hot-dip galvanised steel
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. A 15, DACHFIX STEEL Sump unit 300 / DACHFIX POINT inspection shaft 30/30
Product description

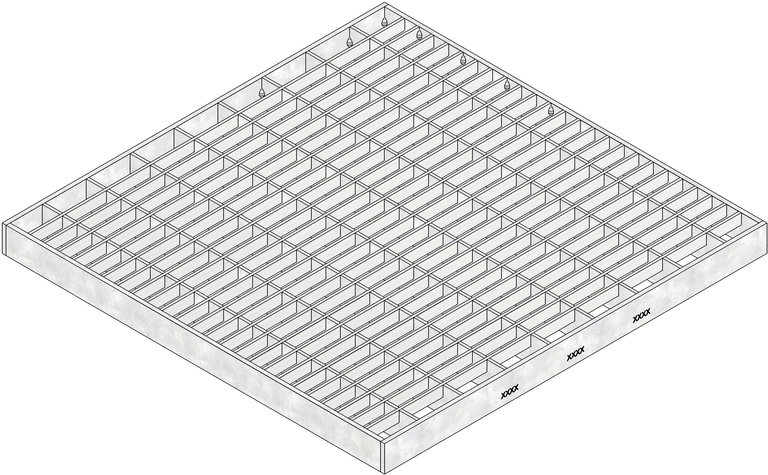

DACHFIX STEEL drain box 300 / DACHFIX POINT inspection shaft 30/30 - Mesh grating, MW 30/10 mm, galvanised, loading class A 15, optionally screwable, no interruption of the mesh pattern, length x width = 290 x 290 mm, item no. 65327
Packaging unit
300
