Article No. 97448
DRAINFIX CLEAN FSU 400, class D 400
Ductile iron grating SW 3 x 120/18 mm, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

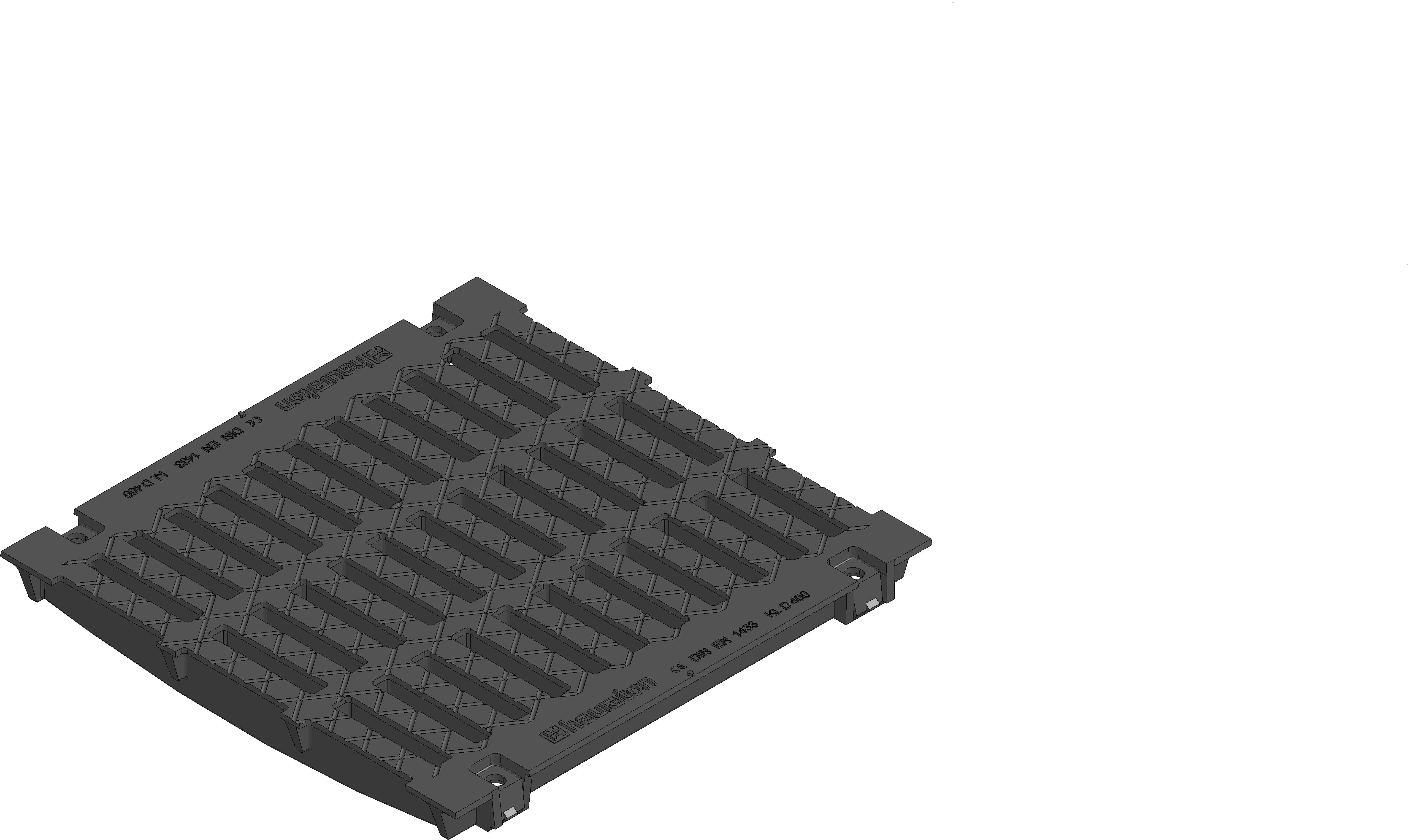

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
97448
Length
500 mm
Width
479 mm
Height
58 mm
Einlegetiefe
40 mm
Weight
25.42 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1420.0 cm²/m
Nominal size
400
Inlet opening
120 x 18 mm
Regulations
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Regulations
Ductile iron grating SW 3x 120/18 mm, black, cl. D 400, DRAINFIX CLEAN FSU 400, 0,5 m
Regulations
DRAINFIX CLEAN FSU 400 - ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 3x 120/18 mm, black, with horizontal thrust resistance, loading capacity A 15 up to D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 97448
Regulations
-
national declaration of performance
Nation DoP
