Article No. 97548
DRAINFIX CLEAN FSU 500, class D 400
Ductile iron grating SW 3 x 140/18 mm, black, with plastic caps, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

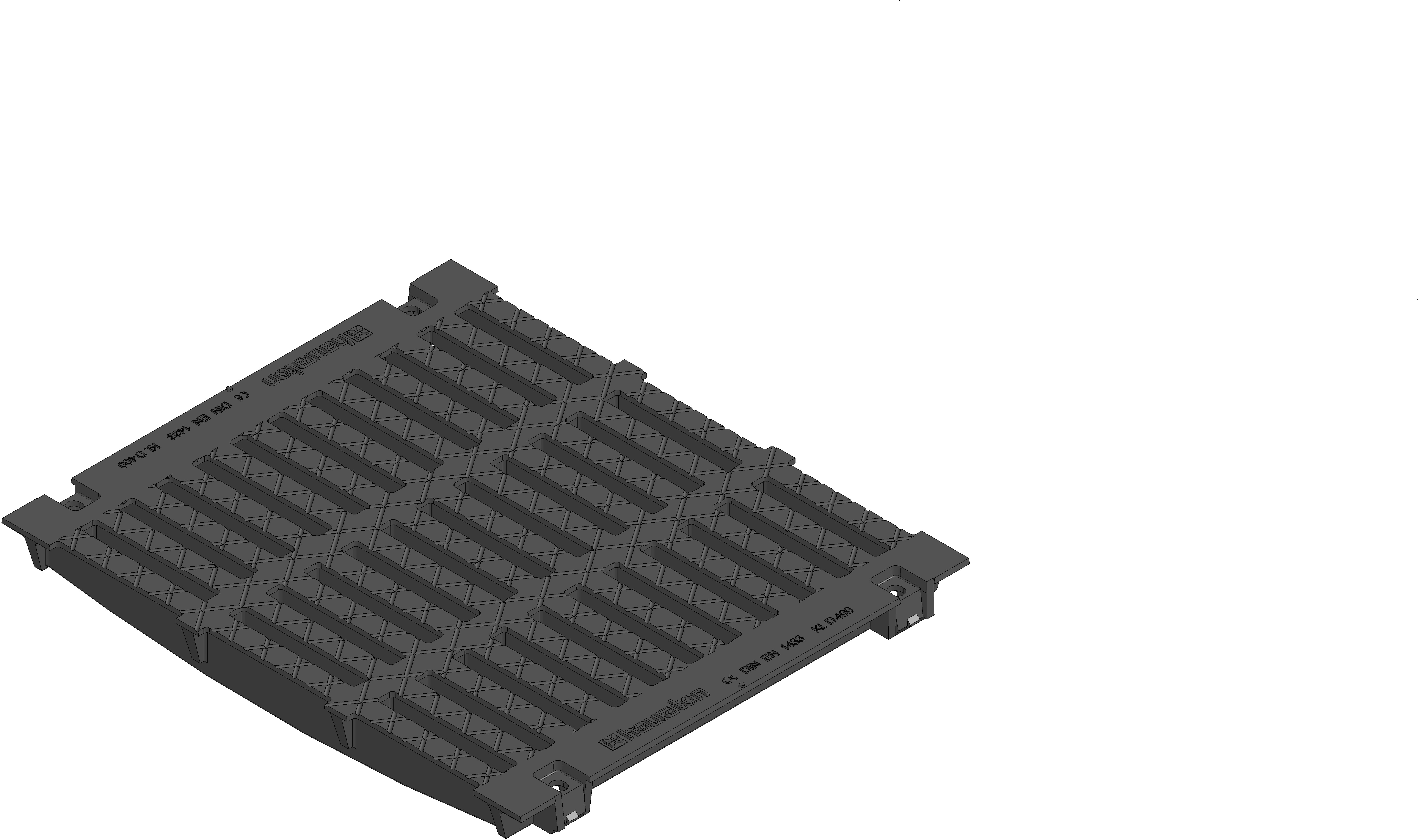

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
97548
Length
500 mm
Width
579 mm
Height
60 mm
Einlegetiefe
40 mm
Weight
33.30 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1810.0 cm²/m
Nominal size
500
Inlet opening
140 x 18 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 3x 140/18 mm, black, cl. D 400, with plastic caps, DRAINFIX CLEAN FSU 500, 0,5 m
Product description
DRAINFIX CLEAN FSU 500 - ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 3x 140/18 mm, black, with horizontal thrust resistance, loading capacity A 15 up to D 400 according to EN 1433, CE compliant, fourfold locking, with plastic caps, installation length 500 mm, item no. 97548
Packaging unit
-
