Article No. 97549
DRAINFIX CLEAN FSU 500, class D 400
Ductile iron grating SW 3 x 140/18 mm, KTL coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

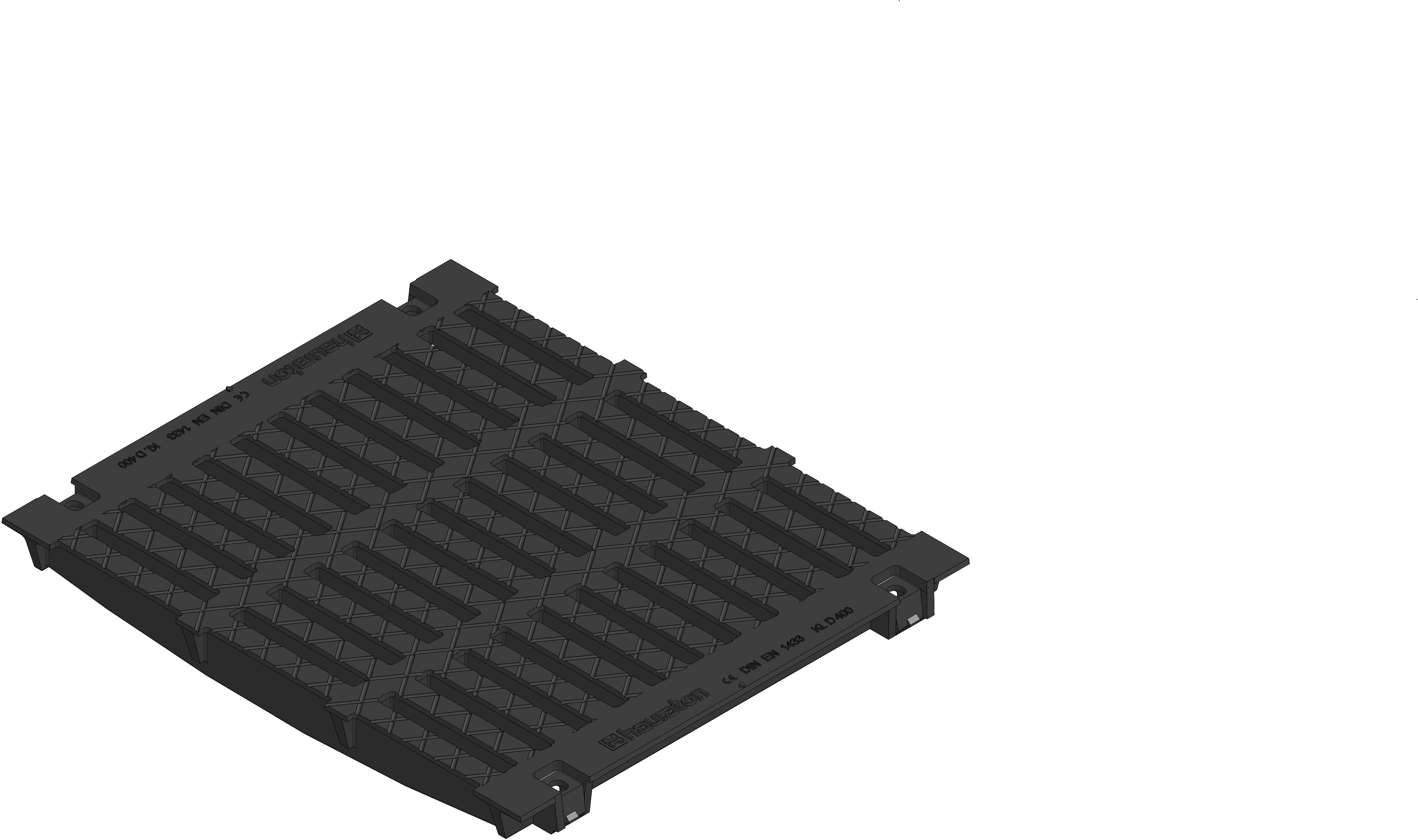

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
97549
Length
500 mm
Width
579 mm
Height
60 mm
Einlegetiefe
40 mm
Weight
33.30 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
1810.0 cm²/m
Nominal size
500
Inlet opening
140 x 18 mm
Regulations
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Regulations
Ductile iron grating 3x SW 140/18 mm, KTL-coated, cl. D 400, DRAINFIX CLEAN FSU 500, 0.5 m
Regulations
DRAINFIX CLEAN FSU 500 - ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 3x 140/18 mm, KTL-coated, with horizontal thrust resistance, loading capacity from A 15 up to D 400 according to EN 1433, CE compliant, fourfold locking, installation length 500 mm, item no. 97549
